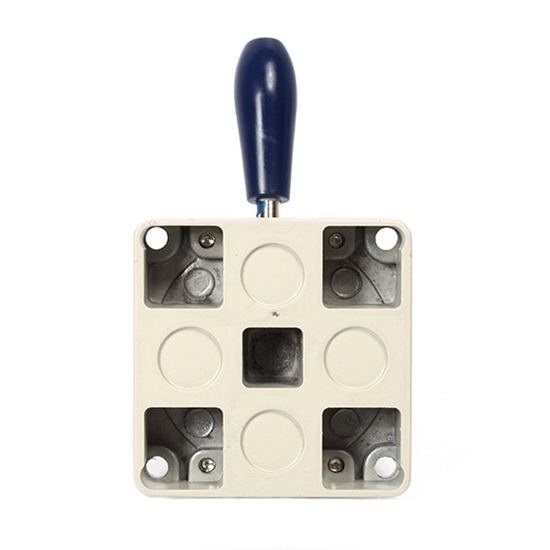

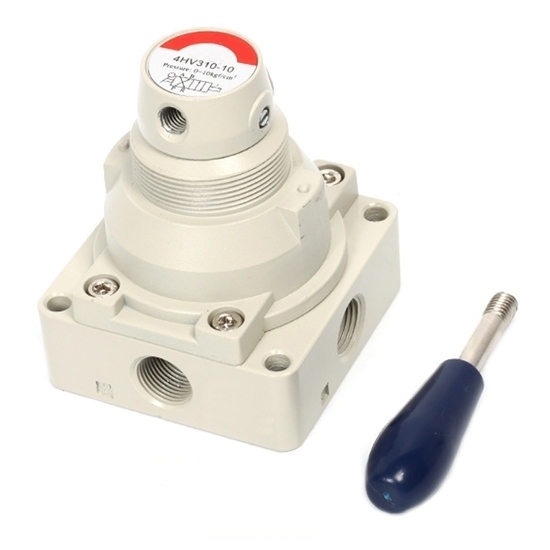

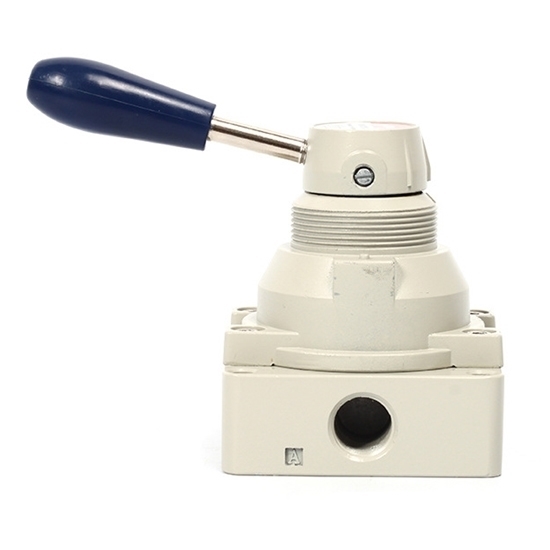

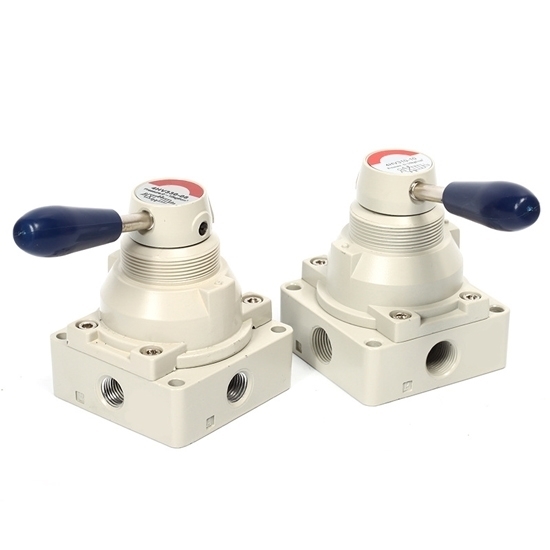

G3/4" Hand Lever Valve, 4 Way, 2/3 Position

0 reviews • Write a review

from

$75.39

Ex Tax: $75.39

Stock: In Stock
Model: RDDLZ-VALVE-423
Weight: 1.00
SKU: RDDLZ-VALVE-423

Available Options

Position

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This hand valve cannot be used for drinking water.

3/4 inch hand operated lever valve is used in air chucks, pneumatic actuators, venturi vacuum generators and other pneumatic equipment which need manual operation.

Specification

Model		RDDLZ-4HV410-20	RDDLZ-4HV430-20
Working Media		Compressed Air
Action Mode		Direct-acting Type
Position		4/2 Port (4 Way, 2 Position)	4/3 Port (4 Way, 3 Position)
Port Size		G3/4
Lubrication		No Need
Working Pressure		1MPa
Proof Pressure		1.5MPa
Working Temperature		0 ~ 60℃
Operation Angle		90°
Material	Body	Aluminum Alloy
	Seal	NBR

Wiring Diagram

4 Way 2 Position

4 Way 3 Position

Dimensions (Unit: mm)

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	P
RDDLZ-4HV410-20	109	70.5	2	G3/4	17.5	M52*1.5	130	6.5	101.5	89	63.5	3	81	94	160
RDDLZ-4HV430-20	109	70.5	2	G3/4	17.5	M52*1.5	130	6.5	101.5	89	63.5	3	81	94	160

Tips: Advantages of pneumatic hand lever valve

The hand lever valves are one of the most fundamental parts in hydraulic machinery as well and pneumatic machinery. They allow fluid flow into different paths from one or more sources.
Valve bodies are mirror finished and hard oxidation. Low power consumption, fast response, import oils seals with longer service life. Coils with DIN connection or flying leads.
