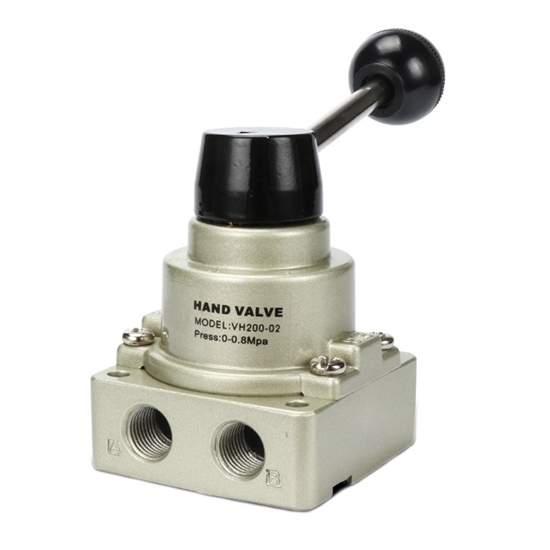

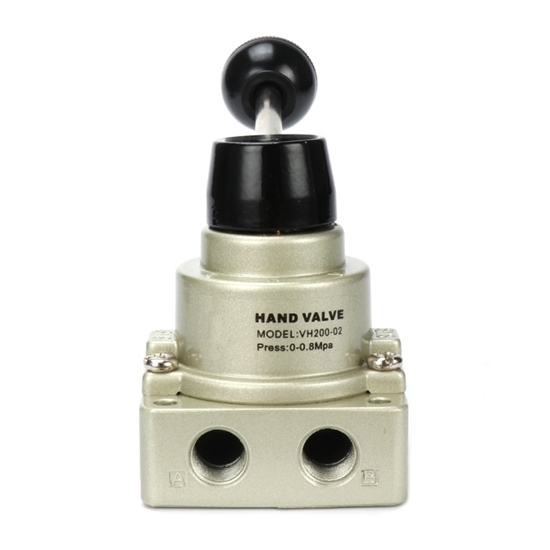

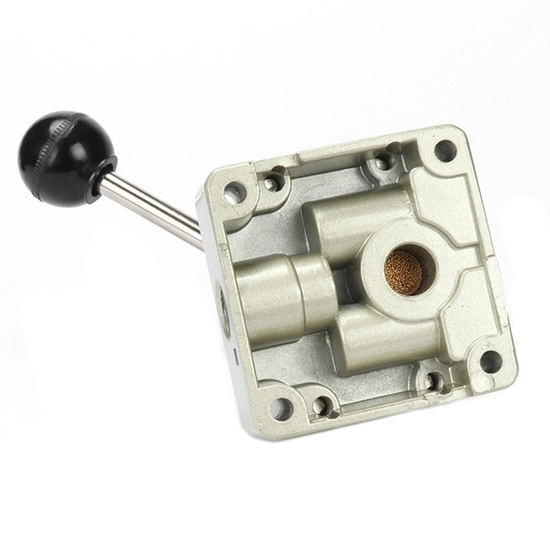

G1/4" Hand Lever Valve, 4 Way, 2 Position

0 reviews • Write a review

from

$48.79

Ex Tax: $48.79

Stock: In Stock
Model: RDDLZ-VALVE-14
Weight: 1.00
SKU: RDDLZ-VALVE-14

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This hand valve cannot be used for drinking water.

1/4 inch hand operated lever valve is used in air chucks, pneumatic actuators, venturi vacuum generators and other pneumatic equipment which need manual operation.

Specification

Model		RDDLZ-VH200-02
Working Media		Compressed Air
Action Mode		Direct-acting Type
Position		4/2 Port (4 Way, 2 Position)
Port		G1/4
Lubrication		No Need
Working Pressure		0.8MPa
Proof Pressure		1.0MPa
Working Temperature		5 ~ 60℃
Material	Body	Aluminum Alloy
	Seal	NBR

Wiring Diagram

Dimensions (Unit: mm)

Tips:

The hand lever air valve is a control part in the pipeline fluid conveying system. It is used to change the passage section and the flow direction of the medium. It has the functions of diversion, cut-off, adjustment, throttling, check, shunt or overflow and pressure relief. It is used for fluid control, and the nominal diameter is up to 10m. The manual valve can act according to predetermined requirements under the action of pressure, temperature or other forms of sensing signals, or simply open or close without relying on the sensing signal. It relies on the drive or automatic mechanism to make the opening and closing parts lift and slide. , pendulum or rotary motion, so as to change the size of its flow channel area to achieve its control function.
