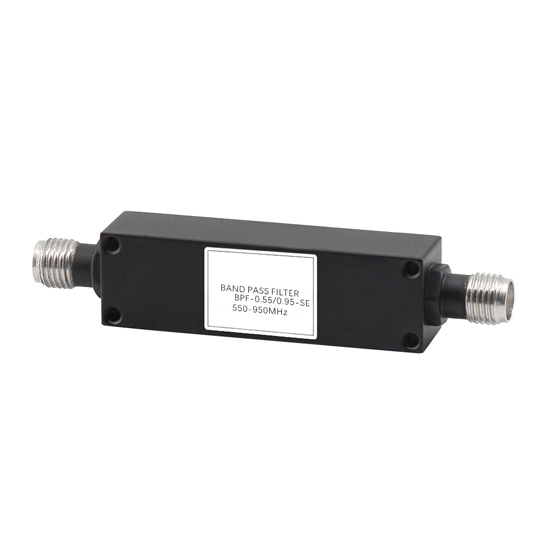

Passive RF Bandpass Filter, 550~950 MHz

0 reviews • Write a review

from

$382.59

Ex Tax: $382.59

Stock: In Stock
Model: RDDLZ-BPF-950MHZ
Weight: 1.00
SKU: RDDLZ-BPF-950MHZ

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

In the realm of audio applications, passive RF bandpass filters are instrumental in mitigating unwanted noise and interference, facilitating the transmission of a clean and unblemished signal. For antennas, these BPF band pass filters contribute to the tuning process, allowing for the reception of desired frequencies while rejecting undesired signals.

Specification

Model: RDDLZ-BPF-0.55/0.95-SE
Frequency Range: 550~950 GHz
Insertion Loss: ≤2.0dB
Passband Fluctuation: ≤1.0dB
Restraint Outside the Band: ≥40dB@DC-450MHz, ≥40dB@1100-3000MHz
VSWR: ≤1.50:1
Input/ Output Connectors: SMA-Female
Operation Temperature: -40℃~+70℃
Surface Fishing: Black Paint
Dimension: 40.4*12*10mm

Dimension (Unit: mm)

Test Curve Diagram

Tips: Can a passive RF bandpass filter be used in conjunction with other filters?

Yes, a passive RF bandpass filter can be effectively used in conjunction with other filters to achieve more complex signal processing. By combining multiple filters, engineers can create a tailored frequency response that meets specific application requirements. For example, a system might use a bandpass filter to isolate a particular frequency range and then employ additional filters, such as low-pass or high-pass filters, to further refine the signal. This modular approach allows for enhanced customization and flexibility in addressing various RF communication or electronic system challenges. Additionally, the combination of filters enables the suppression of unwanted frequencies and interference, contributing to improved overall signal quality and system performance.
