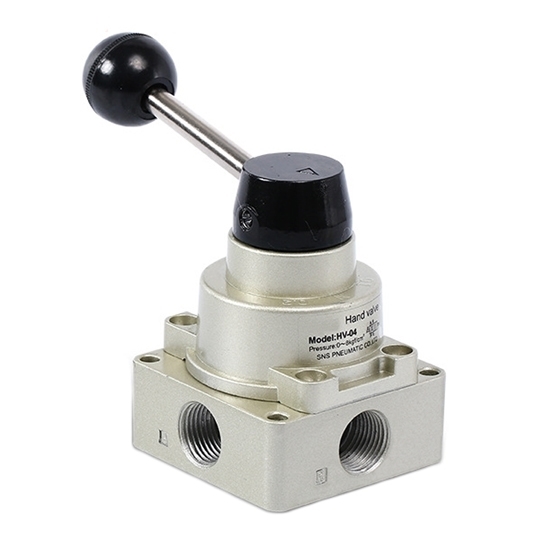

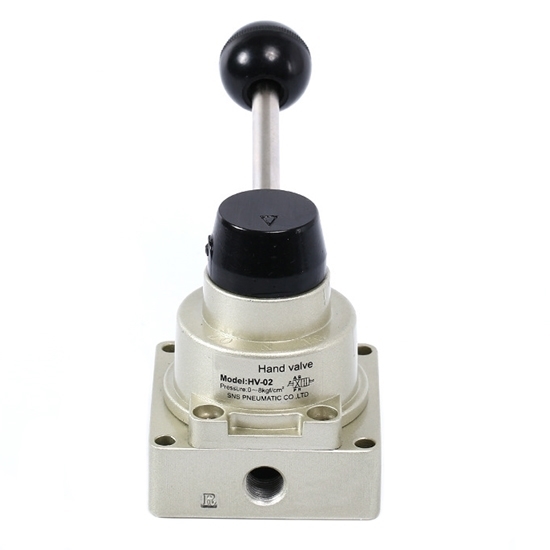

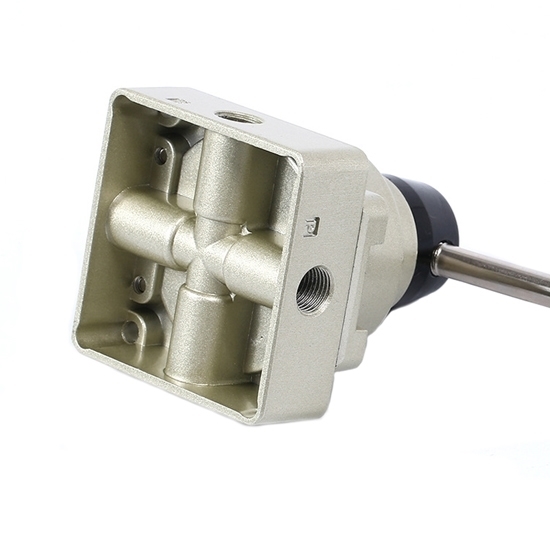

G3/8" Hand Lever Valve, 4 Way, 2 Position

0 reviews • Write a review

from

$48.79

Ex Tax: $48.79

Stock: In Stock
Model: RDDLZ-VALVE-38
Weight: 1.00
SKU: RDDLZ-VALVE-38

Available Options

Port Size

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This hand valve cannot be used for drinking water.

Economical price 3/8 inch hand operated lever valve is used in air chucks, pneumatic actuators, venturi vacuum generators and other pneumatic equipment which need manual operation.

Specification

Model		RDDLZ-HV-02	RDDLZ-HV-03	RDDLZ-HV-04
Working Media		Compressed Air
Action Mode		Direct-acting Type
Position		4/2 Port (4 Way, 2 Position)
Port Size		G1/4	G3/8	G1/2
Lubrication		No Need
Working Pressure		0 ~ 0.8MPa
Proof Pressure		1.0MPa
Working Temperature		0 ~ 60℃
Material	Body	Aluminum Alloy
	Seal	NBR

Wiring Diagram

Dimensions (Unit: mm)

Tips: Why you need RDDLZ hand lever valve?

RDDLZ hand lever valve is simple structure in linear type and easy in installation and maintain.
High pressure double crank to control the die opening and closing.
Running in a high automatization and intellectualization, no pollution.
It Adopts advanced world famous brand components in pneumatic parts, electric parts and operation parts.
Apply a linker to connect with the air conveyor, which can directly inline with filling machine.
