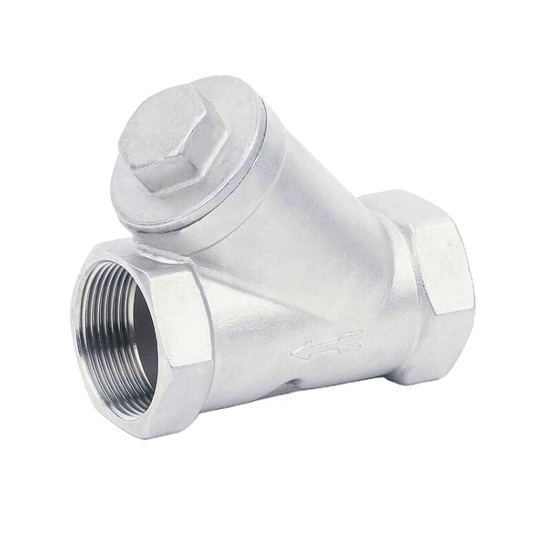

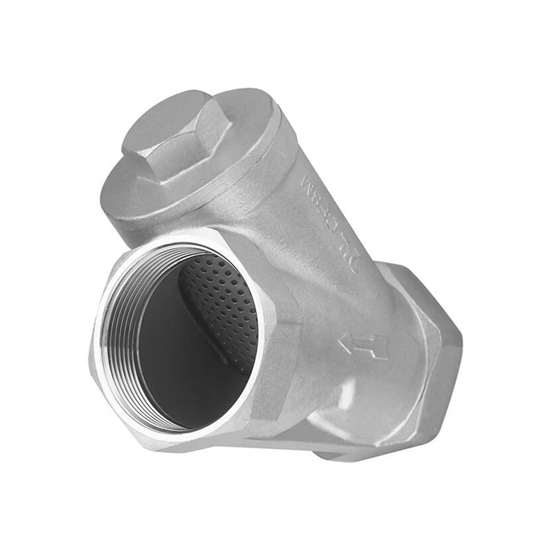

1-1/4 Inch Stainless Steel Y Strainer

0 reviews • Write a review

from

$54.85

Ex Tax: $54.85

Stock: In Stock
Model: RDDLZ-SSYS-32
Weight: 1.00
SKU: RDDLZ-SSYS-32

Available Options

Short Description

Material

Thread

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This Y type strainer cannot be used for drinking water.

Get a 1-1/4 inch (DN32) stainless steel Y strainer for a low price. With 800PSI working pressure, SS 304/316 material, optional BSP, BSPT, and NPT thread, the Y-type filter is widely used in the chemical industry, heating, refrigeration, petroleum, construction, wind power, etc.

Specifications

Model: RDDLZ-T11F-800WOG (P/R)
Type: Y Type Strainer
Nominal Diameter: 1-1/4 inch (DN32)
Working Pressure: 800PSI
Product Material: 304/316 Stainless Steel
Connection Form: Thread
Thread Standard: BSP, BSPT, NPT
Temperature Range: -20°C~180°C
Weight: 0.53kg

Dimensions (Unit: mm)

Main Part Materials
NO.	Part Name	Materials	QTY
1	BODY	CF8/CF8M	1
2	FILTER	S304/S316	1
3	JOINT GASKET	PTRE/RPTFE	1
4	CAP	CF8/CF8M	1
Dimension (Unit: mm)
DN	D	L±1.5	H
32	30	97	67

Applications

Y-type strainers can remove impurities, debris, and solid particles from fluid or gas pipelines in industrial and commercial applications. They are typically used in applications where a high flow rate is required, and where there is a risk of damage to equipment or processes from the presence of solid particles.

Tips: Y-Type Strainer vs. Basket Strainer

A Y-type strainer and a basket strainer are both used for filtering unwanted debris and particles from fluid pipelines. The main difference between the two is the shape of the filter element. A Y-type strainer has a Y-shaped filter element, whereas a basket strainer has a cylindrical filter element.
