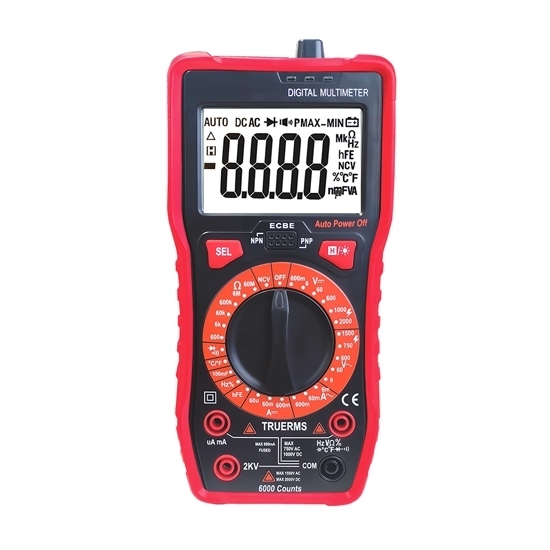

High Voltage Multimeter, Auto Range, 1000V/1500V/2000V

0 reviews • Write a review

from

$94.85

Ex Tax: $94.85

Stock: In Stock
Model: RDDLZ-MLT-19A
Weight: 1.00
SKU: RDDLZ-MLT-19A

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Get a true RMS multimeter at low cost. It is also an auto-range multimeter designed for beginners. Equipped with a 5999 max display, diode testing, triode testing, NCV test, data hold, low battery indication, and overload protection, this smart digital multimeter is widely used in the manufacturing, oil, defense, power, and chemical industry.

Specifications

Model	RDDLZ-MLT-UA19A
Maximum Display Value	5999
Operation Mode	Auto Range
Sample Frequency	60Hz
Input Impedance	10MΩ
Battery Type	6F22 9V Battery (Not included)
Dimension	200x94x57mm
Weight	About 580g
DC Voltage	600mV/6V/60V/600V/1000V/2000V
AC Voltage	6V/60V/600V/750V/1500V
DC Current	6mA/60mA/600mA
AC Current	60uA/60mA/600mA
Resistance	600Ω~60MΩ
Capacitance	100mF
Temperature	-20~1000℃
Duty Ratio	0.1%~99.9%

Functions

NCV	√	0verload Protection	√
True RMS	√	Auto Power Off	√
Diode Test	√	Flashlight	√
On-off Buzzer	√	Backlight Function	√
Low Battery Display	√	Data Hold	√
HEF/Transistor	√	LED Torch	√

Details

Applications

Tips: What is an auto-range multimeter?

An auto-range multimeter is a type of digital multimeter that can automatically select the appropriate range for the electrical parameter being measured. With an auto-range multimeter, you don't need to manually set the measurement range, as the device will detect the range based on the signal being measured. This feature makes the measurement process faster and easier, especially for people who are new to using multimeters.
