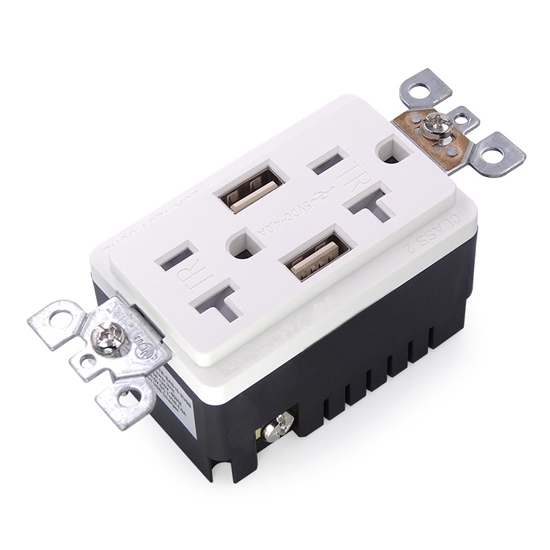

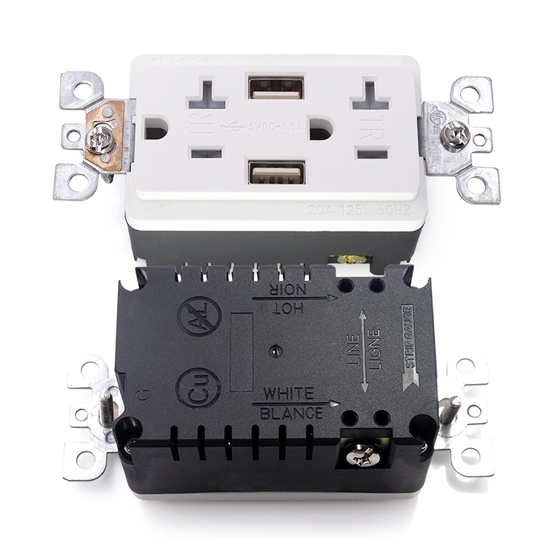

20 Amp USB Wall Outlet, Electrical Receptacle

0 reviews • Write a review

from

$61.19

Ex Tax: $61.19

Stock: In Stock
Model: RDDLZ-B2USB-20
Weight: 1.00
SKU: RDDLZ-B2USB-20

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RDDLZ low price USB wall outlet is built to meet every need in commercial, industrial, household, institutional settings. This USB socket has safe lock function, the reset button will not engage if protection has been compromised.

Feature

Good heat dissipation.
Design of bottom grid, good cooling.
Super high impact resistance and thermal stability.
Cover pans are made of high quality polycarbonate.
Chemical corrosion resistance.
Fingerprint-resistant zinc plated mounting brackets.

Specification

Model: RDDLZ-B2USB-20
Rated Working Current: 20 amp
Rated Working Voltage: 125V
Power Frequency: 60Hz
USB Voltage and Current: 5VDC 4A/ 2.1A
Wire Specifications: #14-@10AWG
USB Compatible Products: USB1.0/2.0/3.0, Includes Apple Products
Electric Strength: Pressure Resistance 1500V 50Hz
Duration: 1 Min
Working Temperature: -20℃ ~ 60℃
Insulation Resistance: ＞50MΩ (DC500V)
Short-Circuit Current: 10kA
Meet the Standard: UL498CSA-C22.2 NO.42, Housing Material Flame Retardant Grades UL94-V2

Dimensions

Tips: How to choose a right USB wall outlet?

Choose flame retardant insulating materials with high temperature resistance, moisture resistance and excellent impact resistance.
Select an USB receptacle which has the protection door with anti-unipolar insertion, so that the plug and socket can be connected to the power supply, which fundamentally prevents the safety accident caused by the leakage of the plug.
