1.5 Inch Stainless Steel Sanitary Butterfly Valve

0 reviews • Write a review

from

$96.39

Ex Tax: $96.39

Stock: In Stock
Model: RDDLZ-BV-15I
Weight: 1.00
SKU: RDDLZ-BV-15I

Available Options

Short Description

Connection Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

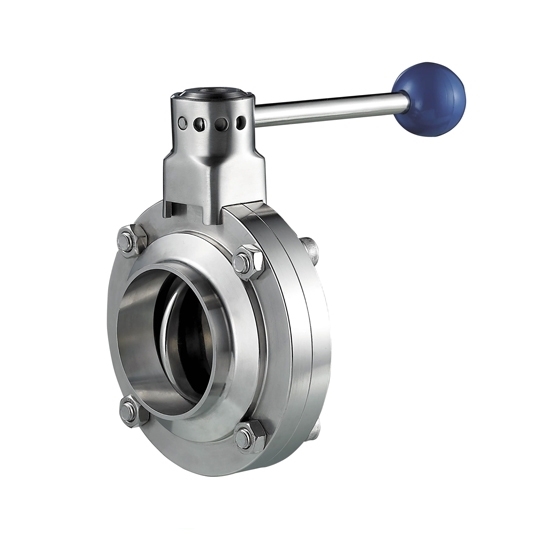

1.5 inch manual operated sanitary butterfly valve also can be controlled by an electric actuator or pneumatic actuator. It is a stainless steel hygienic valve with simple structure and purity requirements for food-processing and chemical industries.

Specification

Model	RDDLZ-BV-15I
Type	SS Sanitary Butterfly Valve
Size	1.5 inch
Connection Method (Optional)	Welded End/ Quick Connect End
Drive Method	Manual
Body Material	304 Stainless Steel (Default) / 316 Stainless Steel
Washer and Gasket	EPDM Comforms to PFA 177.2600
Handle	AISI 304/ PP
Surface Finishing	Ra≤0.8
Operating Torque	3Nm
Operating Temperature	-10℃~+120℃
Max. Pressure	1MPa
Min. Pressure	0.02MPa p.abs
Weight	1.8 kg
Certificate	PED97-23EC, FDA.177.2600

Dimensions (Unit: mm)

Size	Dn	D	D1	J	H	H1	A1	A2
1.5 inch	35.1	38.1	50.5	126	44.5	43.5	50	70

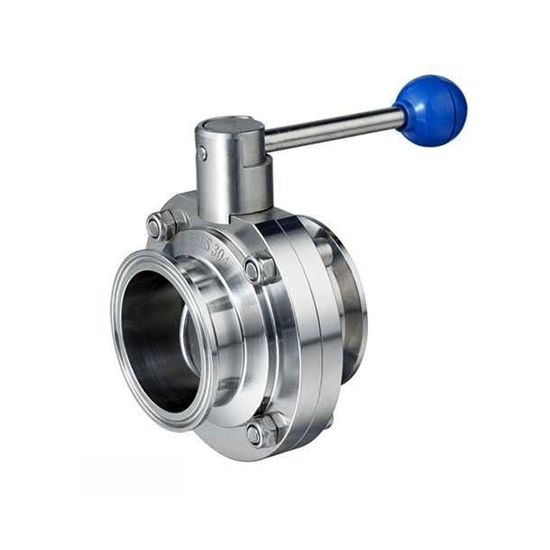

Tips: What is tri clamp sanitary butterfly valve?

A sanitary butterfly valve is a stainless steel BF valve that uses a circular butterfly plate as an opening and closing part and rotates with the valve stem to open, close and adjust the fluid passage. The butterfly plate of the butterfly valve is installed in the diameter direction of the pipeline. In the cylindrical passage of the butterfly valve body, the disc-shaped butterfly plate rotates around the axis, and the rotation angle is between 0° and 90°. When the rotation reaches 90°, the valve is fully open.
