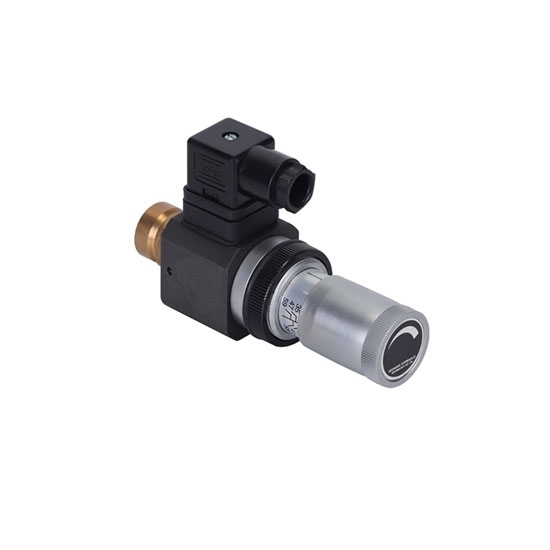

Oil Pressure Switch, 30 To 200 Bar

Oil Pressure Switch, 30 To 200 Bar
Oil Pressure Switch, 30 To 200 Bar
0 reviews • Write a review
from
$125.68
Ex Tax: $125.68
  • Stock: In Stock
  • Model: RDDLZ-OPS-02N
  • Weight: 1.00
  • SKU: RDDLZ-OPS-02N

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Hydraulic oil pressure switch can adjust the pressure range from 400 to 3000 psi, highly accurate repetitive positioning, high temperature resistance up to 110°C.

Features

  1. Applicable medium: hydraulic oil or similar liquid, non-corrosive and free of solid particles and fibers, with a viscosity of 5-1500cst oily liquid.
  2. High-strength aluminum alloy shell, chrome-plated joints, high strength, strong oxidation resistance, and not easy to be corroded.
  3. The pressure switch has high sensitivity and long service life.
  4. The oil high-pressure switch material uses special processing technology to reduce the film, special heat treatment process contact, no jam, no fluctuation, low noise, high repeat positioning accuracy, and stable product performance.
  5. Cast iron shell or copper joints can be customized according to customers.

Specification

ModelRDDLZ-OPS-JCS02N
Max Voltage220V
Max Current5A
Pressure30-200 Bar
Max Pressure200 Bar
Shell MaterialAluminum Alloy
Use Environment Temperature-40℃ - 110℃
Weight1kg

Details

400 to 3000 Psi Hydraulic Pressure Switch Installation

30 to 200 Bar Oil Pressure Switch Dimension (Unit=mm)

Tips: Pressure switch application

The oil  pressure switch adopts the tube-type installation method, which can be applied to various hydraulic systems and circuits, in the hydraulic fluid fields of light industry machinery, textile machinery, food machinery, electronic equipment, automobile machinery, chemical machinery, transportation machinery, mining, smelting equipment, etc.
