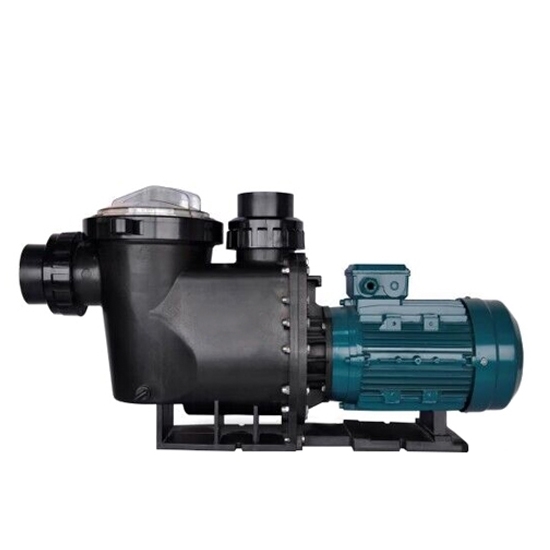

4 HP Pool Pump, 220V / 380V
from
$1,834.29
Ex Tax: $1,834.29
- Stock: In Stock
- Model: RDDLZ-PP-4HP
- Weight: 1.00
- SKU: RDDLZ-PP-4HP
4 hp pool pump with cheap price for sale. Pool pump adopts 100% copper motor. The medium temperature of portable pool pump between 5 ℃ and 50 ℃.
Feature:
- Magnificent flow rate and lift, the core energy of water circulating, 2-3m suction lift.
- Free-tool filter cover design, easy to maintenance.
- IP55 protection level, with none-leaky design.
- 100% copper wire motor, 24 hours running.
- Silicone sealing ring, cover all watering section, enhance pump sealing system.
- Engineering plastic body, pump can be effectively protected under bad weather, long service life.
- Anti rust cast-aluminum motor cover,fast heat dissipation; PPO plastic steel material impeller, resist high temperature and corrosion.
Specification:
- Model: RDDLZ-FLB-40
- Voltage: 220V / 380V (3 phase)
- Frequency: 50 Hz / 60 Hz
- Power: 4 HP (3 kW)
- Hmax: 18m
- Qmax: 48 m3/h
- Port Size: 90 mm
- Motor: copper motor
- Medium Temperature: 5 ℃ - 50 ℃
- Protection Level: IP55
- Weight: 26 kg

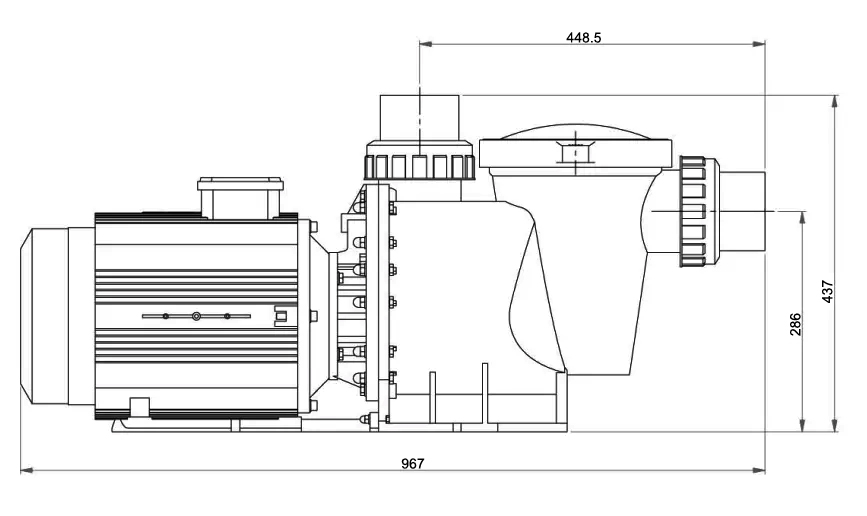

Dimension (Unit: mm)

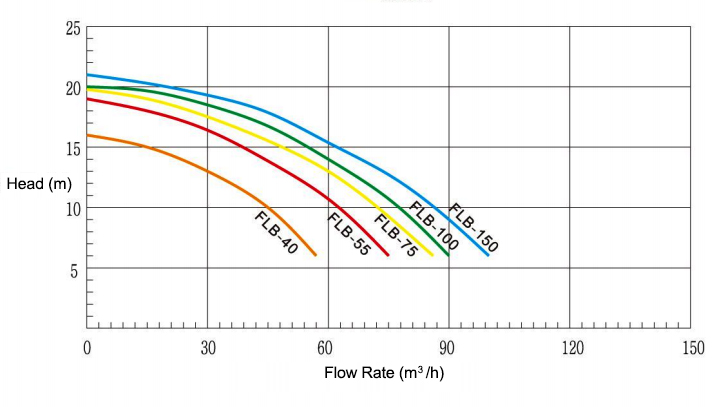

Flow Diagram:

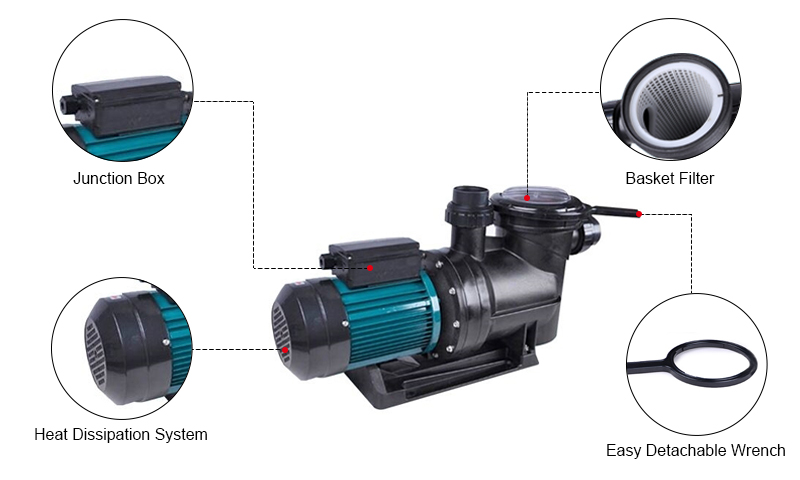

Details
Application:
Tips: Pool Pump Troubleshooting
- Motor will not start. If the motor hums but doesn't start, you're likely dealing with a jammed impeller. This can happen when the impeller gets clogged with debris. Open the pump and clear the blockage.
- Motor shuts off. First, check to see if there's a low voltage issue, or if there's a power drop happening at the motor on your variable speed pool pump. This is most frequently caused by undersized wiring.
