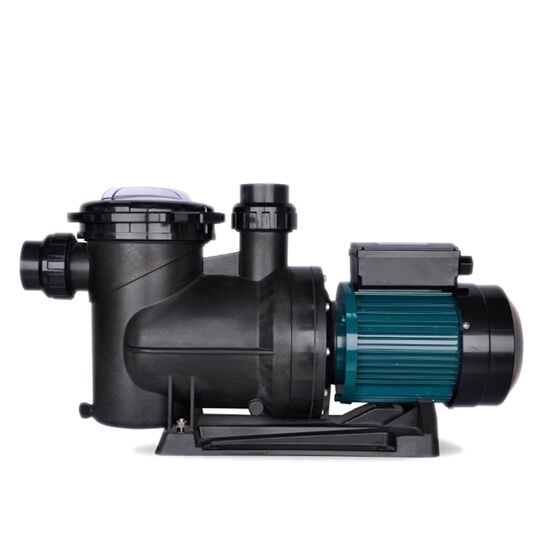

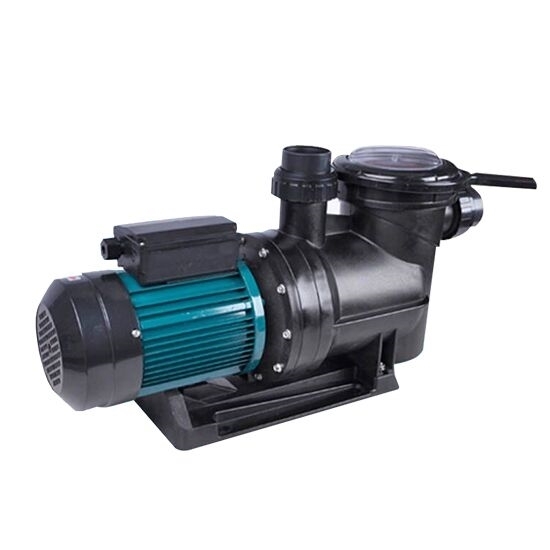

0.5 HP Pool Pump, 220V / 380V

0 reviews • Write a review

from

$570.87

Ex Tax: $570.87

Stock: In Stock
Model: RDDLZ-PP-05HP
Weight: 1.00
SKU: RDDLZ-PP-05HP

Available Options

Short Description

Voltage and Frequency

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

0.5 hp pool pump with cheap price for sale. Pool pump adopts 100% copper motor. The medium temperature of swimming pool submersible pump between 5 ℃ to 50 ℃.

Feature:

Magnificent flow rate and lift, the core energy of water circulating, 2-3m suction lift.
Free-tool filter cover design, easy to maintenance.
IP55 protection level, with none-leaky design.
100% copper wire motor, 24 hours running.
Silicone sealing ring, cover all watering section, enhance pump sealing system.
Engineering plastic body, pump can be effectively protected under bad weather, long service life.
Anti rust cast-aluminum motor cover,fast heat dissipation; PPO plastic steel material impeller, resist high temperature and corrosion.

Specification:

Model: RDDLZ-FQS-370
Voltage: 220V (1 or 3 phase) / 380V (3 phase)
Frequency: 50 Hz / 60 Hz
Power: 0.5 HP (0.37 kW)
Hmax: 8m
Qmax: 11 m³/h
Port Size: 50 mm
Motor: copper motor
Medium Temperature: 5 ℃ - 50 ℃
Protection Level: IP44
Weight: 10 kg
Certification: CE

Dimension (Unit: mm)

Structure:

01: plastic spanner	02: lid lock ring	03: lid	04: O' ring	05: basket
06: union nut	07: union bushing	08: O' ring	09: pump body	10: O' ring
11: drain plug	12: nut	13: gasket	14: screw	15: base
16: O' ring	17: screw	18: diffuser	19: impeller	20: O' ring
21: shaft seal	22: flange	23: screw	24: flange	25: R ejection water ring
26: screw	27: motor	28: junction box	29: electric current safeguard

Details

Flow Diagram:

Tips: How to Use Pool Pump?

Before use, check whether the bolts are loose and the power cables and plugs are intact.
In order to prevent electric shock accident, it is necessary to install leakage circuit breaker or electric shock security device and other corresponding security measures.
The working voltage range of the pump must be +10%, -10% of the rated voltage, otherwise long-term use will make the motor coil hot, the motor service life is shortened or caused by burning. If the electric pump is far away from the power supply, the power supply line should be thickened appropriately, otherwise the voltage will be used to drop and cannot run.
Close the power switch, make the pump idle for about 2 minutes, check the start, operation is normal, steering is correct.
