- Stock: In Stock
- Model: RDDLZ-PP-10HP
- Weight: 1.00
- SKU: RDDLZ-PP-10HP
10 hp swimming pool pump adopts 100% copper motor. The medium temperature of variable speed pool pump between 5 ℃ and 50 ℃. This type of pool pump is relatively powerful and is typically used for larger swimming pools or commercial applications where there is a need for significant water circulation and filtration capacity.
Feature:
- Magnificent flow rate and lift, the core energy of water circulating, 2-3m suction lift.
- Free-tool filter cover design, easy to maintenance.
- IP55 protection level, with none-leaky design.
- 100% copper wire motor, 24 hours running.
- Silicone sealing ring, cover all watering section,enhance pump sealing system.
- Engineering plastic body, pump can be effectively protected under bad weather, long service life.
- Anti rust cast-aluminum motor cover,fast heat dissipation; PPO plastic steel material impeller, resist high temperature and corrosion.
Specification:
- Model: RDDLZ-FLB-100
- Voltage: 220V / 380V (3 phase)
- Frequency: 50 Hz / 60 Hz
- Power: 10 HP (7.5 kW)
- Hmax: 21m
- Qmax: 80 m3/h
- Port Size: 95 mm
- Motor: copper motor
- Medium Temperature: 5 ℃ - 50 ℃
- Protection Level: IP55
- Weight: 66 kg

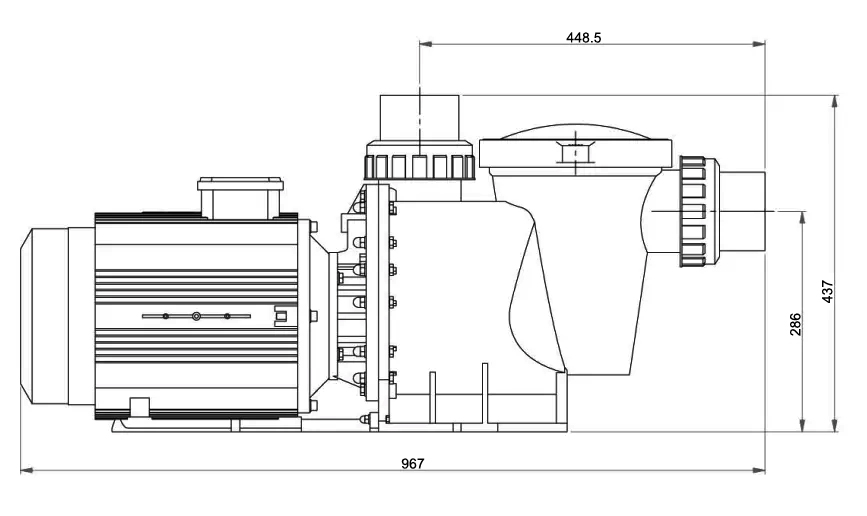

Dimension (Unit: mm)

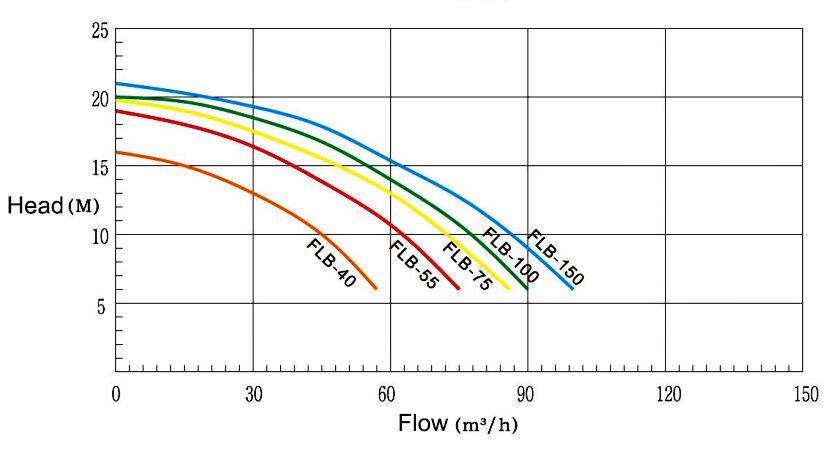

Flow Diagram:

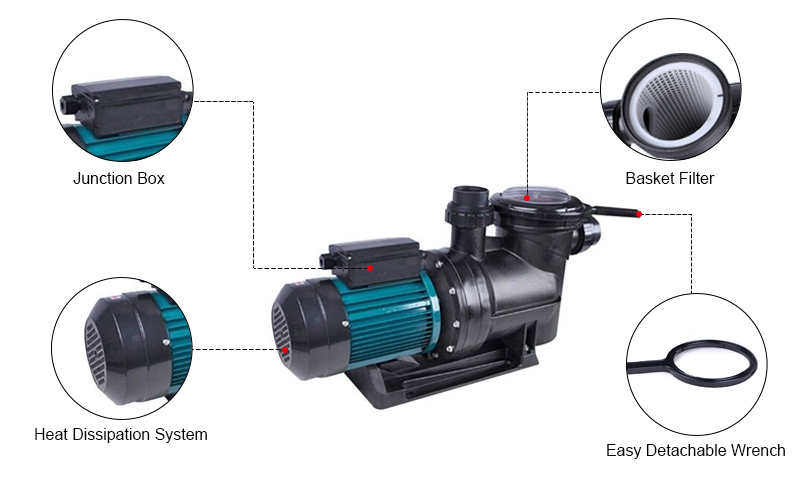

Details
Application:
Tips: How Does Pool Pump Work?
Pool pumps use a permanent magnet motor (PMM) to operate. A permanent magnet motor is a kind of motor that uses permanent magnets in addition to windings on its field, as opposed to windings alone. Because of PMM, the pump uses less energy than a single-speed pump to operate. In short, a variable speed pump is able to circulate a swimming pool's water at lower flow rates for a longer period of time without added energy consumption.
