2 HP Pool Pump, 220V / 380V

0 reviews • Write a review

from

$873.49

Ex Tax: $873.49

Stock: In Stock
Model: RDDLZ-PP-2HP
Weight: 1.00
SKU: RDDLZ-PP-2HP

Available Options

Voltage and Frequency

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Economical price 2 hp pool pump with 16 meters head for sale. Swimming pool pump often used in large size swimming plll, water park and water project. Silicone sealing ring, cover all watering section, enhance swimming pool pump sealing system.

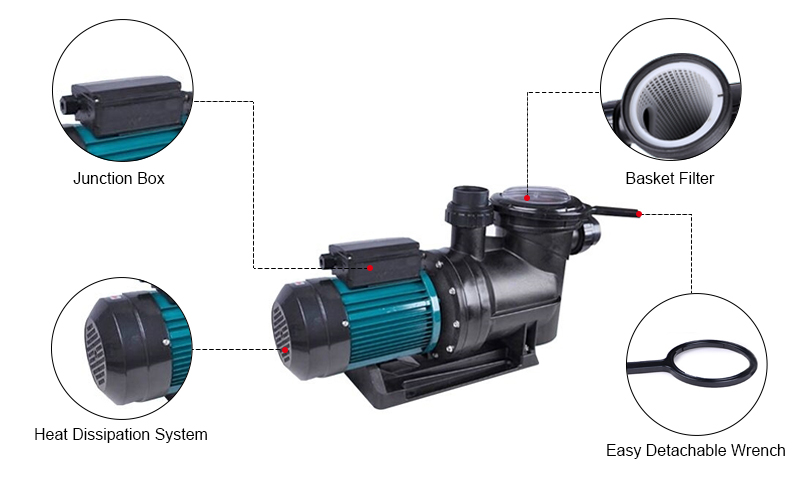

Feature:

Magnificent flow rate and lift, the core energy of water circulating, 2-3m suction lift.
Free-tool filter cover design, easy to maintenance.
IP55 protection level, with none-leaky design.
100% copper wire motor, 24 hours running.
Silicone sealing ring, cover all watering section, enhance pump sealing system.
Engineering plastic body, pump can be effectively protected under bad weather, long service life.
Anti rust cast-aluminum motor cover,fast heat dissipation; PPO plastic steel material impeller, resist high temperature and corrosion.

Specification:

Model: RDDLZ-FQS-1500
Voltage: 220V (1 or 3 phase) / 380V (3 phase)
Frequency: 50 Hz / 60 Hz
Power: 2 HP (1.5 kW)
Hmax: 16m
Qmax: 25 m³/h
Port Size: 50 mm
Motor: copper motor
Medium Temperature: 5 ℃ - 50 ℃
Protection Level: IP44
Weight: 17 kg

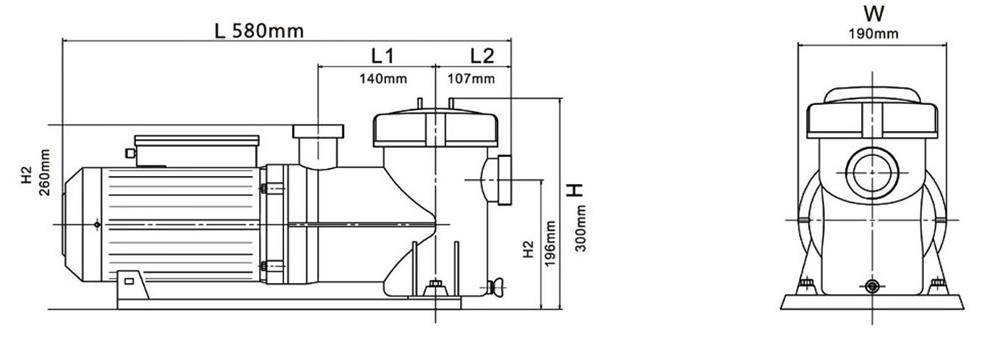

Dimension (Unit: mm)

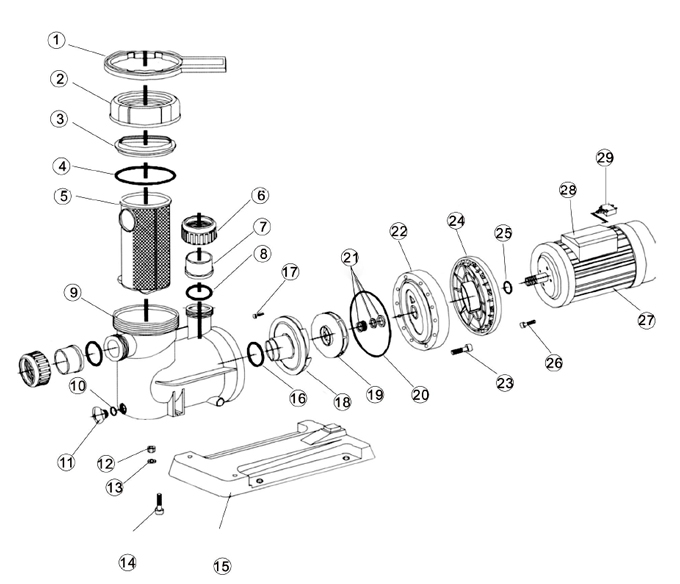

Structure:

01: plastic spanner	02: lid lock ring	03: lid	04: O' ring	05: basket
06: union nut	07: union bushing	08: O' ring	09: pump body	10: O' ring
11: drain plug	12: nut	13: gasket	14: screw	15: base
16: O' ring	17: screw	18: diffuser	19: impeller	20: O' ring
21: shaft seal	22: flange	23: screw	24: flange	25: R ejection water ring
26: screw	27: motor	28: junction box	29: electric current safeguard

Details

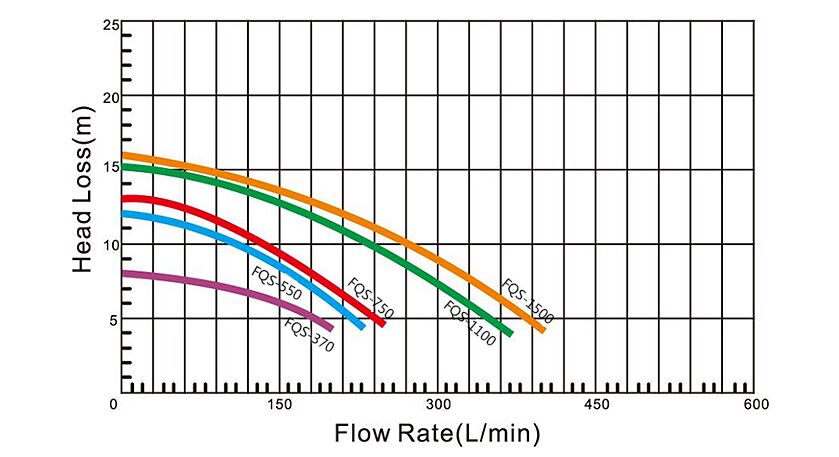

Flow Diagram:

Tips: How to Program Pool Pump?

With modern technology miracles, you can now get pool pumps with built-in programming that support energy-efficient usage.

The benefit of having automation on your pool pump is that you don't have to think about switching speeds all the time for specific tasks. The pump will automatically change speeds once its completed a task. Say, for example, you want the pump to run on high to give the pool a proper cleaning. After it runs the program to high powered clean, it will go back to a low power setting or turn off for a period.

And the best part is if you can set a timer on a standard pool pump, then using the built-in programming features shouldn't be any cause for concern. The controls are typically straightforward to comprehend.
