Inductive Proximity Sensor For Metal, 2 Wire, M24, 12V-24V

0 reviews • Write a review

from

$39.75

Ex Tax: $39.75

Stock: In Stock
Model: RDDLZ-PROS-I24
Weight: 1.00
SKU: RDDLZ-PROS-I24

Available Options

Short Description

Specification Selection

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

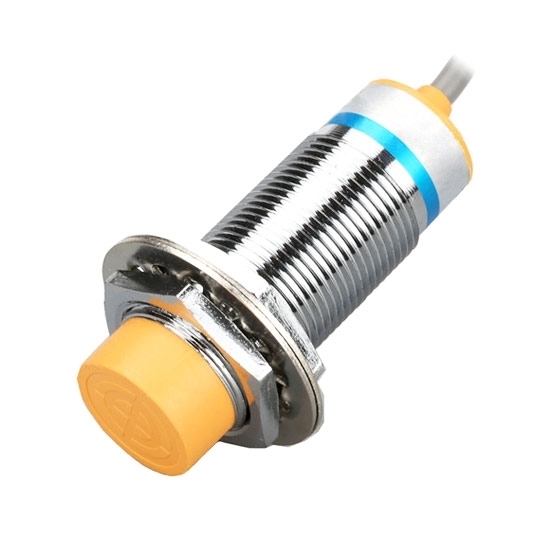

Inductive proximity sensor with M24*1.5 thread, DC 2 wire output, manufacturer direct sale. The operating temperature range of the proximity sensor is -30~65℃ (non-freezing or condensation), and the operating humidity range is 35~95%RH.

Functions

Red LED checks the state of proximity sensor
High repeated positioning accuracy
High switching frequency
Wide voltage range
Antivibration, dust, water and oil prevention
Reverse power protection, short circuit protection, directly connecting with PLC
Can replace small switches and limit switches

Specification

Model			RDDLZ-PSI-24A10ZD
Installation type			Unshielded	Shielded
All the output methods	DC type	NPN	NO	NO
			NC	NC
			NO+NC	NO+NC
		PNP	NO	NO
			NC	NC
			NO+NC	NO+NC
		2 wire	NO	NO
			NC	NC
	AC type	2 wire	NO	NO
			NC	NC
		3 wire	NO+NC	NO+NC
Detection range			10mm±10%	8mm±10%
Setting distance			0-8mm	0-7mm
Delay distance			≤10% detection range
Detection object			Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Object attenuation coeffient			Steel: 1.0, Stainless steel: 0.85, Aluminum: 0.4, Brass: 0.4, Bronze: 0.3
Standard detection object			Iron24241mm
Response frequency			DC: 0.8kHz, AC: 50Hz
Supply voltage			DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage			AC1000V 50/60Hz 1min between charging part and housing
Voltage influence			Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current			N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control output			N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protection			N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity			Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence			Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance			≥50MΩ (DC500 megameter) between charging part and housing
Material			Housing: Nickel plated brass, Detection surface: ABS
Protection class			IP67
Cable length			1.2m

Dimensional drawing (unit: mm)

Wiring diagram

Tips: Unshielded proximity sensor installation notes

The installation of unshielded proximity sensor will encounter many problems. For example, there is interference between proximity sensor and mounting bracket and mutual interference between proximity sensors etc.

If a proximity sensor is installed in a metal bracket, its height of proximity sensor should be more than two times longer than the detection distance. The surrounding metal distance should be as long as the diameter of proximity sensor in order to avoid the influence of bracket.
As for the distance between proximity sensors, the face to face installation distance should be two times longer than the detection distance and the side-by-side distance should be two times longer than the diameter of proximity sensor.
After installation, appropriate testing and measurements can be performed to ensure that the proximity sensor can operate accurately and is not interfered with by surrounding metal objects or adjacent sensors.
