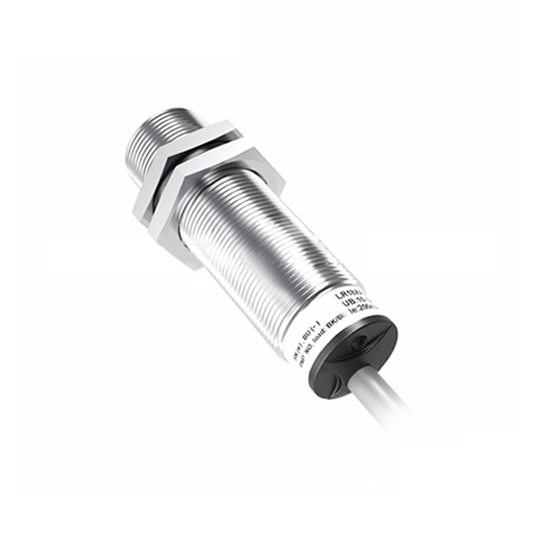

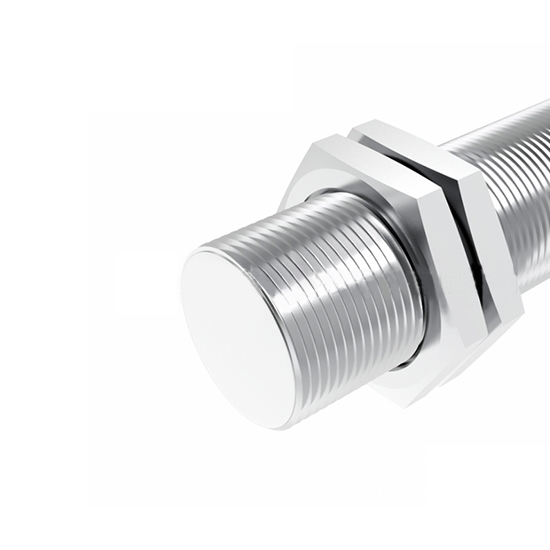

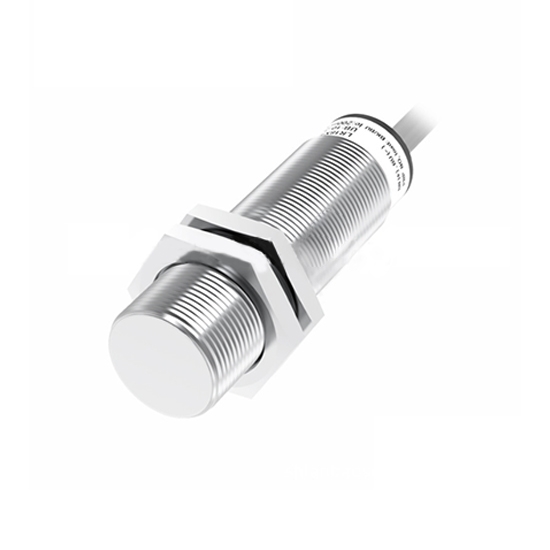

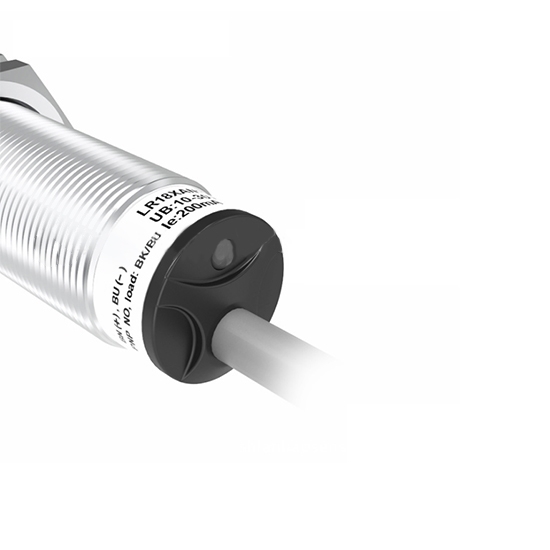

Analog Output Proximity Sensor, Inductive, M12 Connector/ 2m PVC Cable

0 reviews • Write a review

from

$164.45

Ex Tax: $164.45

Stock: In Stock
Model: RDDLZ-PS-LR18X
Weight: 1.00
SKU: RDDLZ-PS-LR18X

Available Options

Installation

Output Mode

Connection

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

15-30VDC inductive proximity sensor with rated range 5mm/ 8mm, flush and non-flush two installation types, reverse polarity protection loop protection. It is widely used in displacement measurement, thickness measurement, material differentiation and other fields.

Specification

Model	RDDLZ-LR18X
Installation type	Flush	Non-flush
Rated distance	5mm	8mm
Detection range	1-5mm	1.6-8mm
Switching frequency	200 Hz	100 Hz
Analog signal output	0-10V/ 0-20mA/ 4-20mA/ 0-10V+0-20mA
Diameter	M18
Connection type	M12 connector/ 2m PVC cable
Supply Voltage	15-30VDC
Standard target	Fe 18181t	Fe 24241t
Switch-point drifts	≤±10%/ Sr
Linearity	≤±5%
Repeat accuracy	≤±3%
Load current	≥4.7KΩ (voltage output) ≤470Ω (current output)
Current consumption	≤20mA
Loop protection	Reverse polarity protection
Power indicator	Yellow LED
Ambient temperature	-25℃-70℃
Ambient humidity	35-95% RH
Voltage withstand	1000V/ AC 50/ 60Hz 60s
Insulation resistance	≥50MΩ (500VDC)
Vibration resistant	Complex amplitude 1.5mm 10-50Hz (X, Y, Z directions for 2 hours each)
Protection class	IP67
Housing material	Nickel-copper alloy
Certificates	CE, UL,CCC, ROHS
Warranty	12 months

Dimension (unit: mm)

Wiring diagram

0-10V 0-10V+ 0-20mA

0-20mA/ 4-20mA

Tips: Selection guide for analog output inductive proximity sensors

When purchasing analog output inductive proximity sensors, first select the appropriate detection distance and mounting method based on application requirements. For example, flush mounting is suitable for occasions with less interference from metal environments, while non-flush mounting is suitable for applications that require a larger detection distance. In addition, the housing size (such as M12, M18, M30) needs to be considered to ensure that the sensor can be smoothly integrated into the existing equipment structure.

Secondly, choose the appropriate output type (such as 0-10V voltage type or 4-20mA current type) and wiring method (such as M12 connector or preset cable) according to the control system. The voltage type is suitable for occasions with short transmission distances, while the current type is more suitable for long-distance transmission and industrial environments with high anti-interference requirements. At the same time, confirm the sensor's power supply voltage, response time, protection level and other parameters to ensure its stability and compatibility in actual applications.
