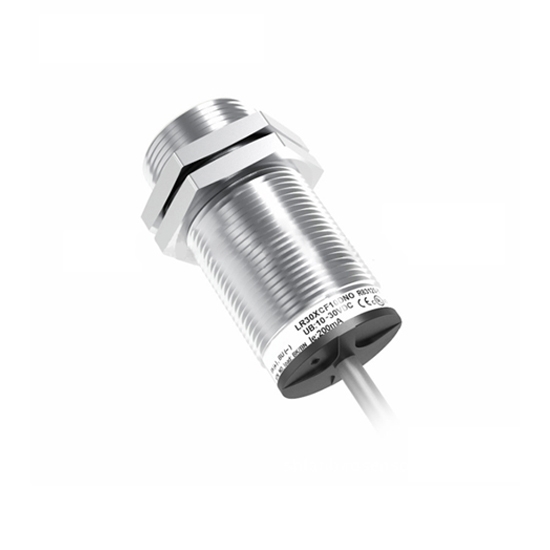

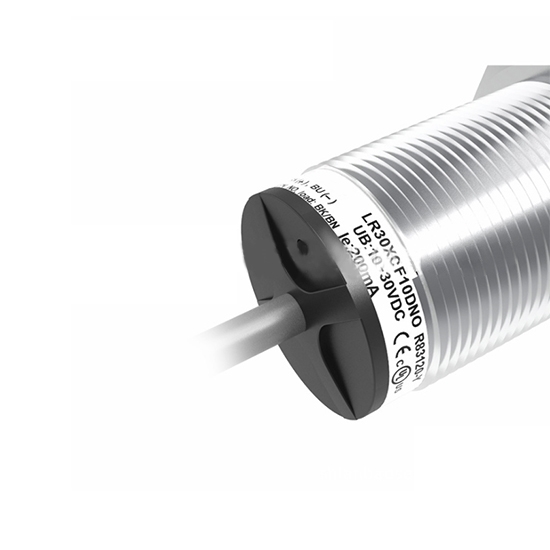

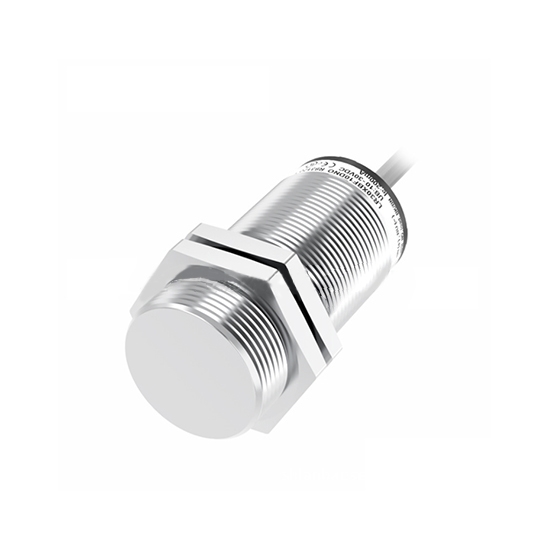

Analog Output Inductive Proximity Sensor, Cylindrical, 0-10V/4-20mA

0 reviews • Write a review

from

$173.97

Ex Tax: $173.97

Stock: In Stock
Model: RDDLZ-PS-LR30X
Weight: 1.00
SKU: RDDLZ-PS-LR30X

Available Options

Installation

Output Mode

Connection

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Analog inductive proximity sensor at affordable price, inductive type proximity sensor with rated range 10mm/ 15mm, M12 connector/ 2m PVC cable two connection types, ambient temperature -25℃-70℃. Analog inductive sensor is widely used in displacement measurement, thickness measurement, material differentiation and other fields.

Specification

Model	RDDLZ-LR30X
Installation type	Flush	Non-flush
Rated distance	10mm	15mm
Detection range	2-10mm	3-15mm
Switching frequency	200 Hz	100 Hz
Standard target	Fe 30301t	Fe 45451t
Analog signal output	0-10V/ 0-20mA/ 4-20mA/ 0-10V+0-20mA
Diameter	M30
Connection type	M12 connector/ 2m PVC cable
Supply Voltage	15-30VDC
Switch-point drifts	≤±10%/ Sr
Linearity	≤±5%
Repeat accuracy	≤±3%
Load current	≥4.7KΩ (voltage output) ≤470Ω (current output)
Current consumption	≤20mA
Loop protection	Reverse polarity protection
Power indicator	Yellow LED
Ambient temperature	-25℃-70℃
Ambient humidity	35-95% RH
Voltage withstand	1000V/ AC 50/ 60Hz 60s
Insulation resistance	≥50MΩ (500VDC)
Vibration resistant	Complex amplitude 1.5mm 10-50Hz (X, Y, Z directions for 2 hours each)
Protection class	IP67
Housing material	Nickel-copper alloy
Certificates	CE, UL,CCC, ROHS
Warranty	12 months

Dimension (unit: mm)

Wiring diagram

0-10V 0-10V+ 0-20mA

0-20mA/ 4-20mA

Tips: Advantages of analog output proximity sensor

The analog output proximity sensor uses a non-contact detection method to avoid mechanical wear and extend its service life.
The proximity sensor has high resolution and repeatability, suitable for precise position control occasions.
It has a wide detection distance range and can automatically adjust the response distance according to the size and material of the metal target.
This sensor provides analog signal outputs, such as 0–10V or 4–20mA, which is convenient for docking with PLC, power inverter or analog acquisition module.
The inductive proximity sensor supports a variety of wiring methods, flexible installation, and adapts to different on-site needs.
