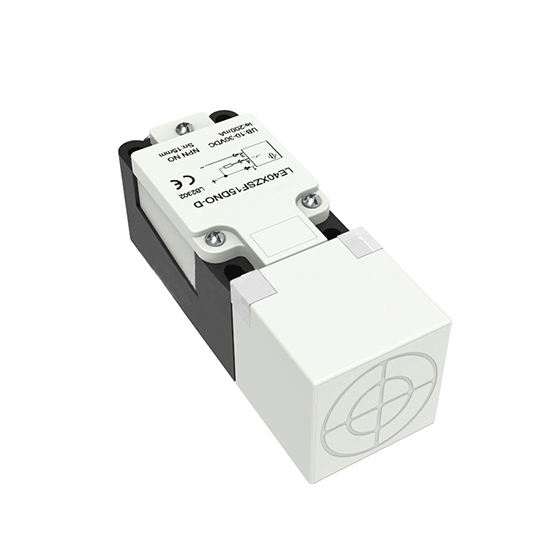

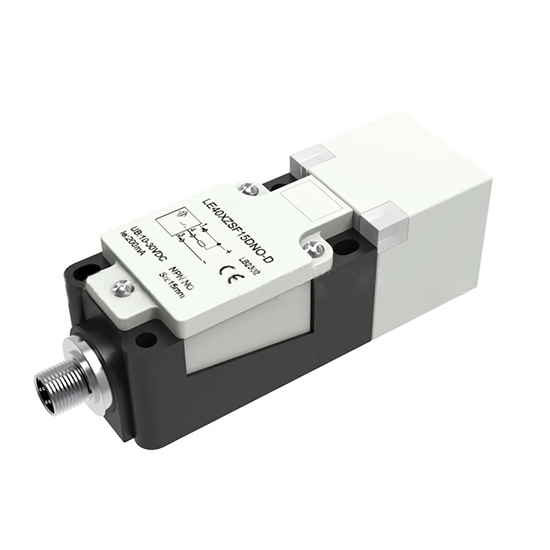

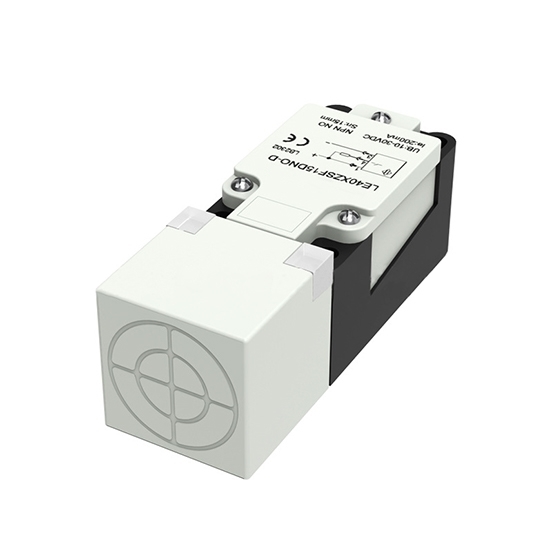

Analog Output Proximity Sensor, Inductive, M12 Connector/ Terminal Connection

0 reviews • Write a review

from

$180.32

Ex Tax: $180.32

Stock: In Stock
Model: RDDLZ-PS-LR40XZ
Weight: 1.00
SKU: RDDLZ-PS-LR40XZ

Available Options

Installation

Output Mode

Connection

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Lower price proximity sensor with flush/ non-flush two installation types, three output methods for selection, current consumption ≤20mA. It has advantages of simple structure, high sensitivity, low output impedance, strong anti-interference ability and high measurement accuracy.

Specification

Model	RDDLZ-LE40XZ
Installation type	Flush	Non-flush
Rated distance	10mm	15mm
Detection range	2-10mm	3-15mm
Switching frequency	100Hz	50Hz
Standard target	Fe 40401t	Fe 45451t
Analog signal output	0-10V/ 0-20mA/ 4-20mA/ 0-10V+0-20mA
Connection type	M12 connector/ Terminal connection
Supply Voltage	15-30VDC
Switch-point drifts	≤±10%/ Sr
Linearity	≤±5%
Repeat accuracy	≤±3%
Load current	≥4.7KΩ (voltage output) ≤470Ω (current output)
Current consumption	≤20mA
Loop protection	Reverse polarity protection
Power indicator	Yellow LED
Ambient temperature	-25℃-70℃
Ambient humidity	35-95% RH
Voltage withstand	1000V/ AC 50/ 60Hz 60s
Insulation resistance	≥50MΩ (500VDC)
Vibration resistant	Complex amplitude 1.5mm 10-50Hz (X, Y, Z directions for 2 hours each)
Protection class	IP67
Housing material	PBT
Certificates	CE, UL,CCC, ROHS
Warranty	12 months

Dimension (unit: mm)

Wiring diagram

0-10V 0-10V+ 0-20mA

0-20mA/ 4-20mA

Tips: Main application scenarios of analog output proximity sensor

‌Industrial automation‌: Real-time monitoring of the position or displacement of the target object (such as robot arm motion control, conveyor belt material alignment).
Process control‌: Accurate measurement of liquid level, material level or thickness (such as tank level feedback, plate thickness monitoring).
Equipment maintenance‌: Indirect detection of mechanical wear or vibration through distance changes (such as bearing wear monitoring).
Quality inspection‌: Identify small differences in object size or shape (such as component assembly accuracy verification).
‌Robot navigation‌: Provide continuous distance signals to assist obstacle avoidance or path planning (such as AGV obstacle avoidance system).
