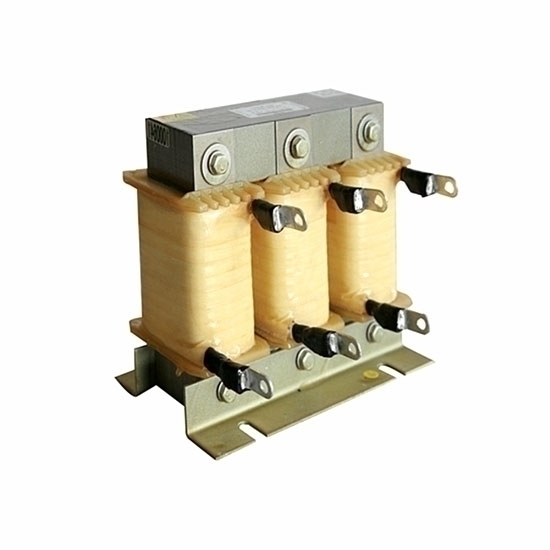

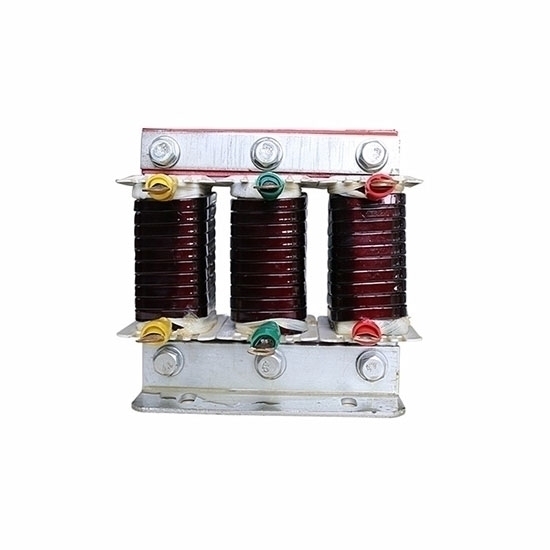

30 Hp (22 KW) AC Line Reactor, 3 Phase Input

0 reviews • Write a review

from

$389.68

Ex Tax: $389.68

Stock: In Stock
Model: RDDLZ-ILR-022
Weight: 1.00
SKU: RDDLZ-ILR-022

Available Options

Short Description

Material

Voltage (V)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

30 hp Input line reactor for sale, rated current 60A, 3 phase input for VFD, 16A rated current, low price, long life and high performance.

30 hp Input Line Reactor Specifications

Basic	Model	RDDLZ-ACR-0060-0M24-0.4SC
	Recommended VFD Mode	GK3000-4T0220G (30 hp three phase VFD)
	Phase	3 Phase
	Power	30 hp (22 kW)
	Weight	11.5 kg
Technical Parameters	Work Valtage	380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50Hz/60 Hz
	Rated Current	60 A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	0.24 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altittude	≤2000m

30 hp Input Line Reactor Size & Circuit Diagram

Dimension (±5mm)
L	D	W	W1	H	A×B
195mm	120mm	150mm	72mm	165mm	8.5×20

Tips: Characteristics of input reactors

Applicable to reactive power compensation and harmonic control;
The input reactor is used to limit the sudden change of the grid voltage and the current surge caused by the operation of the overvoltage; the harmonics are filtered to suppress the distortion of the grid voltage waveform;
Smoothing the spikes contained in the power supply voltage and smoothing the voltage defects generated during commutation of the bridge rectifier circuit.
