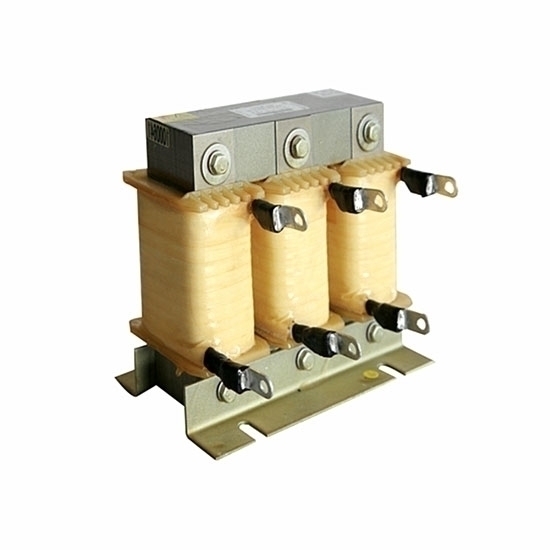

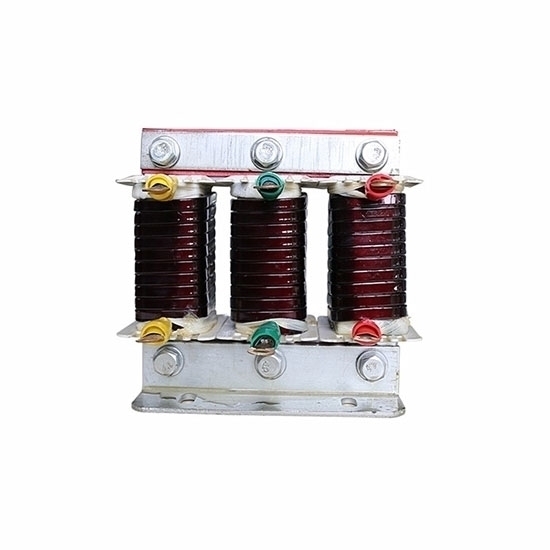

15 Hp (11 KW) AC Line Reactor, 3 Phase Input

15 Hp (11 KW) AC Line Reactor, 3 Phase Input
15 Hp (11 KW) AC Line Reactor, 3 Phase Input
15 Hp (11 KW) AC Line Reactor, 3 Phase Input
15 Hp (11 KW) AC Line Reactor, 3 Phase Input
15 Hp (11 KW) AC Line Reactor, 3 Phase Input
0 reviews • Write a review
from
$314.89
Ex Tax: $314.89
  • Stock: In Stock
  • Model: RDDLZ-ILR-011
  • Weight: 1.00
  • SKU: RDDLZ-ILR-011

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

15 hp Input Line Reactor rated current 30A, 11kW power, 3 phase input, high quality and safety AC input line reactor widely used to connect the load side of the inverter.

15 hp Input Line Reactor Specifications

BasicModelRDDLZ-ACR-0030-0M47-0.4SC
Recommended VFD ModelGK3000-4T0110G (15 hp three phase VFD)
Phase3 Phase
Power15 hp (11 kW)
Weight5 kg
Technical ParametersWork Valtage380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
Work Frequency50Hz/60 Hz
Rated Current30 A
Max Current1.5 Times the Rated Current, Continued 60s
Inductance Value0.47 mH
MaterialAluminium/Copper (Optional)
Voltage Drop2%
Noise≤65dB
Insulation ClassClass F, H
Protection ClassIP00-IP22
Insulation Resistor≥100MΩ
Working EnvironmentOperation Environment-10℃~+45℃
Temperature Rise≤85K
Humidity≤90%RH, without condensation
Running Ambient Temperature-25℃~+45℃
Altittude≤2000m

15 hp Input Line Reactor Size & Circuit Diagram


Dimension (±5mm)
LDWW1HA×B
155mm95mm130mm63mm135mm6×15

Tips:

Reactors are also called inductors. When a conductor is energized, a magnetic field is generated in a certain spatial range around it, so all current-carrying electrical conductors have a general sense of inductivity. However, the inductance of the energized long straight conductor is small, and the generated magnetic field is not strong. Therefore, the actual reactor is a wire wound into a solenoid form, which is called a hollow reactor; sometimes, in order to make the solenoid have a larger inductance, Insert the iron core into the solenoid, called the iron core reactor.
