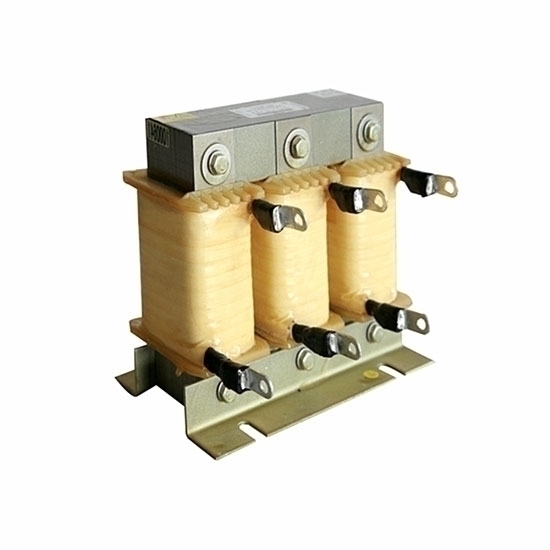

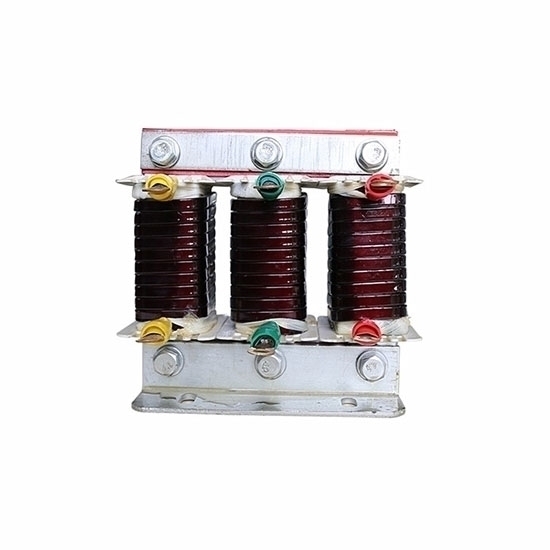

25 Hp (20 KW) AC Line Reactor, 3 Phase Input

0 reviews • Write a review

from

$497.54

Ex Tax: $497.54

Stock: In Stock
Model: RDDLZ-ILR-020
Weight: 1.00
SKU: RDDLZ-ILR-020

Available Options

Short Description

Material

Voltage (V)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

25 hp AC reactor, 20 kW power, 3 phase input, 50 Amps, frequency of 50Hz/60 Hz, vfd line reactor coil adopts F and H class insulation system, which greatly improves the reliability of long-term operation.

25 hp Input Line Reactor Specifications

Basic	Model	RDDLZ-ACR-0050-0M28-0.4SC
	Recommended VFD Model	GK3000-4T0185G (25 hp three phase VFD)
	Phase	3 Phase
	Power	25 hp (20 kW)
	Weight	11 kg
Technical Parameters	Work Valtage	380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50Hz/60 Hz
	Rated Current	50 A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	0.28 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altittude	≤2000m

25 hp Input Line Reactor Size & Circuit Diagram

Dimension (±5mm)
L	D	W	W1	H	A×B
155mm	95mm	140mm	76mm	135mm	6×15

Tips:

Commonly used reactors in power systems are series reactors and shunt reactors.
Series reactors are mainly used to limit the short-circuit current, and are also used in series or in parallel with capacitors in the filter to limit higher harmonics in the grid. The reactors in the 220kV, 110kV, 35kV, and 10kV power grids are used to absorb the capacitive reactive power of the cable lines. The operating voltage can be adjusted by adjusting the number of shunt reactors.
