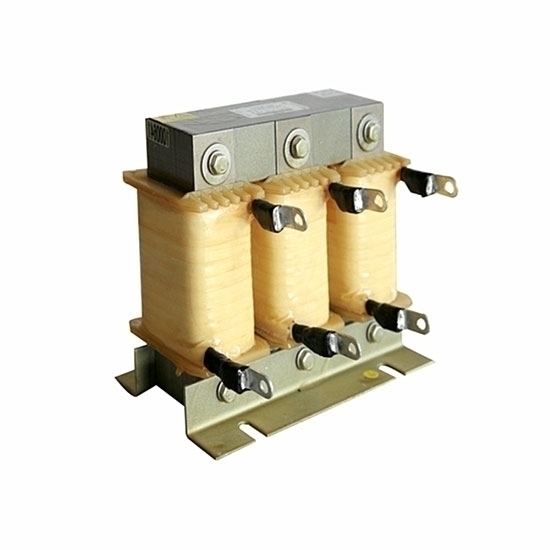

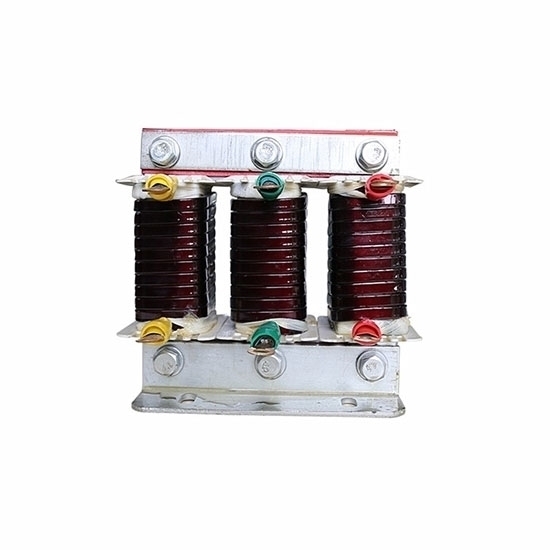

10 Hp (7.5 KW) AC Line Reactor, 3 Phase Input

0 reviews • Write a review

from

$295.86

Ex Tax: $295.86

Stock: In Stock
Model: RDDLZ-ILR-7d5
Weight: 1.00
SKU: RDDLZ-ILR-7d5

Available Options

Short Description

Material

Voltage (V)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

10 hp vfd line reactor rated current 20 Amps, 3 phase input, voltage 220V, 240V, 415V and 480V are available, widely used in various power supply sites.

10 hp Input Line Reactor Specifications

Basic	Model	RDDLZ-ACR-0020-0M70-0.4SC
	Recommended VFD Model	GK3000-4T0075G (10 hp three phase VFD)
	Phase	3 Phase
	Power	10 hp (7.5 kW)
	Weight	4 kg
Technical Parameters	Work Valtage	380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50Hz/60 Hz
	Rated Current	20 A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	0.7 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altittude	≤2000m

10 hp Input Line Reactor Size & Circuit Diagram

Dimension (±5mm)
L	D	W	W1	H	A×B
155mm	95mm	80mm	61mm	170mm	6×15

Tips: The wiring of reactor is divided into two ways, series and parallel

Half-core dry shunt reactor: In the ultra-high voltage long-distance transmission system, it is connected to the tertiary coil of the transformer. It is used to compensate the capacitive charging current of the line, limit the system voltage rise and operate the over voltage, and ensure the reliable operation of the line.
Half-core dry series reactor: Installed in the capacitor circuit, when the capacitor circuit is put in, it will close the inrush current and suppress the harmonics.
