2 Hp (1.5 KW) AC Line Reactor, 3 Phase Input

0 reviews • Write a review

from

$231.36

Ex Tax: $231.36

Stock: In Stock
Model: RDDLZ-ILR-1d5
Weight: 1.00
SKU: RDDLZ-ILR-1d5

Available Options

Short Description

Material

Voltage (V)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

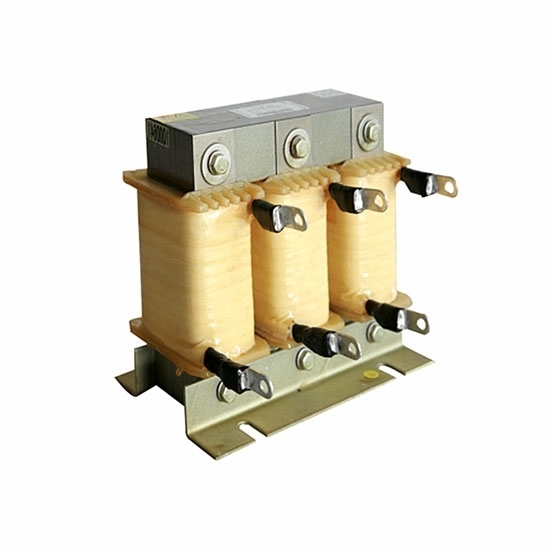

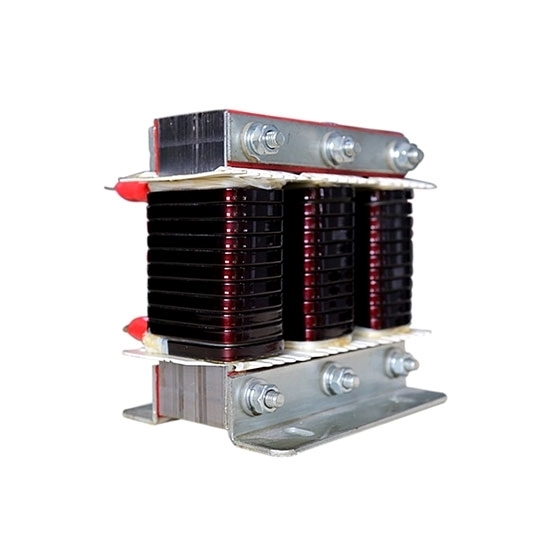

High quality 2 hp AC line reactor, rated current 5 Amps, 3 phase input, working frequency 50Hz/60 Hz. Voltage can choose 380V, 400V, 440V, 460V and 480V. It is a light weight, low cost and long life line reactor.

Specifications

Basics	Model	RDDLZ-ACR-0005-2M80-0.4SC
	Recommended VFD Model	GK3000-4T0015G (2 hp three phase VFD)
	Phase	3 Phase
	Power	2 hp (1.5 kW)
	Weight	2.5 kg
Technical Parameters	Work Valtage	380V (Optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50Hz/ 60Hz
	Rated Current	5 A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	2.8 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altittude	≤2000m

VFD Line Reactor Size & Circuit Diagram

Dimension (±5mm)
L	D	W	W1	H	A×B
115mm	90mm	95mm	68mm	135mm	6×11

Tips: Function of AC Input Line Reactor

AC input line reactor can restrain the harmonic current, improve the power factor and weaken the impact of surge voltage and current in the input circuit, weaken the influence of the power supply voltage imbalance, use it to limit the voltage mutation of the power grid and the current impact caused by overvoltage, smooth the peak pulse contained in the voltage of the power supply, and effectively protect the frequency conversion. AC line reactor can not only prevent interference from power grid, but also reduce the pollution caused by harmonic current generated by rectifier unit.
