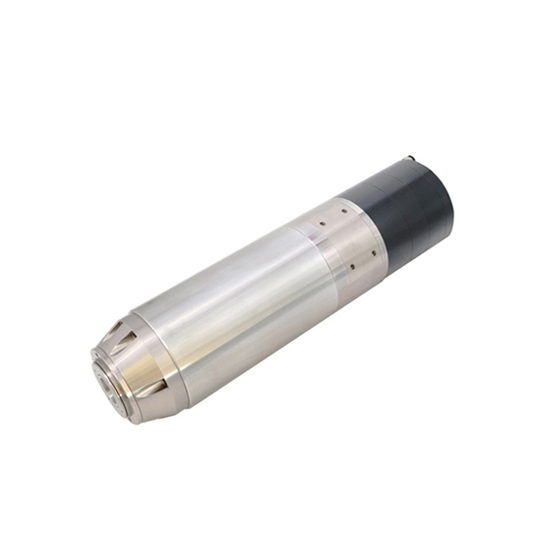

7.5 KW CNC ATC Spindle, 24000 Rpm

0 reviews • Write a review

from

$2,898.15

Ex Tax: $2,898.15

Stock: In Stock
Model: RDDLZ-SPINDLE-ATC7500
Weight: 1.00
SKU: RDDLZ-SPINDLE-ATC7500

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price 7500W water cooled BT30 ATC spindle motor for sale online, 3 phase 380V AC at 800 Hz frequency, 24000rpm speed, low noise and high precision, suitable for CNC router machine.

Features

Reasonable structure design, simple and compact configuration, easy to take apart.
High precision, inflexibility and efficiency, long operation life.
With high grade size, shape, position precision, and quality of the surface.
Enough abrasive resistance, vibration resistance, suitable size.
Work stable, low noise, enough fatigue strength.

Specifications

Model	RDDLZ-STL125-24Z-7.5
Power	7500 W
Speed	24000 rpm
Voltage	380 V
Current	14.3A
Frequency	800 Hz
Tool interface	BT30
Numbers of Poles	4
Automation Grade	Automatic
Type of Cooling	Water cooling
Type of Insulation	F
Protection class	IP54
Weight	27 KG

Note: The spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor. Otherwise, it will burn the spindle motor if the settings are not correct.

Dimension (Unit: mm)

Tips: 2 Cooling Methods Of ATC Spindle

It is necessary to cool and dissipate the automatic tool change electric spindle, especially when it enters hot weather. If you find that the electro-spindle is overheated during the application process, you must take heat dissipation measures. Don't let the electro-spindle run under overheating, which will affect the service life.

Water cooled:

It refers to the design of cooling water circulation inside the automatic tool change electric spindle. Equipped with a corresponding cooler outside, so that the cooling liquid circulates inside the main shaft to take away the internal heat. The advantages of this cooling method are simple and reliable, and the cooling effect is more obvious.

Air cooled:

It refers to the design of a forced convection channel between the housing of the electric spindle and the stator of the motor. The heat of the motor enters the forced convection area through heat conduction, and finally brings the heat into the air to realize the constant temperature operation of the electric spindle. Air cooling is non-polluting. If a static pressure gas bearing is used, the gas of the static pressure gas bearing can be used to circulate inside the spindle to take away part of the heat of the motor.
