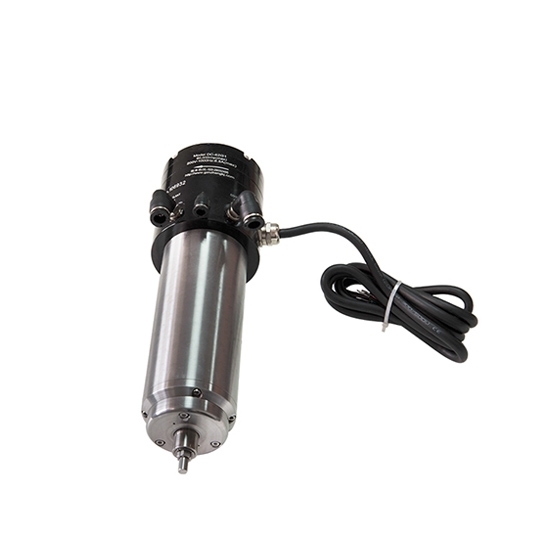

1.8 KW CNC ATC Spindle, 60000 Rpm

0 reviews • Write a review

from

$1,838.46

Ex Tax: $1,838.46

Stock: In Stock
Model: RDDLZ-SPINDLE-ATC1800
Weight: 1.00
SKU: RDDLZ-SPINDLE-ATC1800

Available Options

Short Description

Tooling Connection

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low cost water cooled ATC spindle with 1800 watt, 60000 rpm high speed, 0.28 Nm torque, Φ3- Φ6 collet, 3 phase 220V AC at high frequency 1000Hz, matched with VFD, works for CNC router machine.

Features

Reasonable structure design, simple and compact configuration, easy to take apart.
High precision, inflexibility and efficiency, long operation life.
With high grade size, shape, position precision, and quality of the surface.
Enough abrasive resistance, vibration resistance, suitable size.
Work stable, low noise, enough fatigue strength.

Specifications

Model	RDDLZ-DC-62B
Motor power	1800 W
Rated voltage	3 Phase 220V AC
Max speed	60000 rpm
Max current	6.5A
Max frequency	1000 Hz
Torque	0.28 N·M
Cone at the end of the shaft pulsates	≤0.001 mm
Tooling releasing air pressure	5.6-6.0 Kgf/cm²
Tooling change method	Automatic tool changer
Tooling pulling force	≥1200 N
Tooling back air pressure	No
Tooling connection	Φ3- Φ6 collet
Cooling	Water cooling
Encoder	No
Coolant pressure	≥2.5 Kgf/cm²
Approach switch	No
Bearing lubrication method	Grease
Balance level	G1
Install method	Clamp
Vibration Value	≤0.8 mm/s
Weight	3.97 Kg

Note: The spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor. Otherwise, it will burn the spindle motor if the settings are not correct.

Dimension (Unit: mm)

Details

Tips: Tips For Using an ATC Spindle

The cleaning, maintenance and maintenance of the ATC spindle must be carried out after the power is cut off and the work has completely stopped.
The automatic tool change spindle must be equipped with a safety protection device on the machine.
Do not let your arm touch the rotating part of the ATC spindle during the high-speed rotation of the ATC spindle.
The operator of the ATC spindle should not wear loose or sagging clothing, women must tie their long hair
Please use the tool holder designated by the spindle.
The ATC spindle needs to be maintained regularly in accordance with the manual, otherwise it may cause mechanical failure and damage, and shorten the service life of the ATC spindle.
