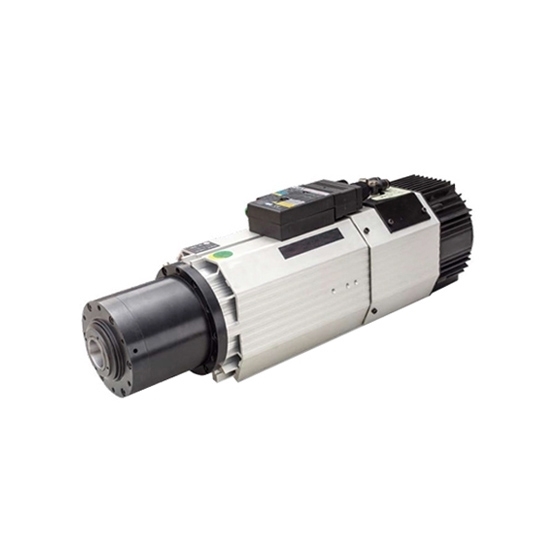

12 KW CNC ATC Spindle, 24000 Rpm

0 reviews • Write a review

from

$4,137.07

Ex Tax: $4,137.07

Stock: In Stock
Model: RDDLZ-SPINDLE-ATC12000
Weight: 1.00
SKU: RDDLZ-SPINDLE-ATC12000

Available Options

Short Description

Voltage (V)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

24000 rpm high speed ISO30 ATC spindle motor with 12 kW power, 3 phase, 220V or 380V AC at 800Hz, air cooled of cooling method, equipped with VFD, is specially designed for CNC router machine.

Features

Reasonable structure design, simple and compact configuration, easy to take apart.
High precision, inflexibility and efficiency, long operation life.
With high grade size, shape, position precision, and quality of the surface.
Enough abrasive resistance, vibration resistance, stable size.
Work stable, low noise, enough fatigue strength.

Specifications

Model	RDDLZ-JGLF-12K
Power	12000 W
Speed	12000 - 24000 rpm
Voltage	380V AC / 220V AC
Current	22.8A / 39.5A
Frequency	400 - 800 Hz
Tool interface	ISO30
Numbers of Poles	4
Automation Grade	Automatic
Type of Cooling	Air cooling
Weight	31 KG

Note: The spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor. Otherwise, it will burn the spindle motor if the settings are not correct.

Dimension (Unit: mm)

Details

Tips For Choosing a Spindle Motor

With the increasing demand for high-speed motors in various industries, the application range of high-speed motors has become more and more extensive, so what should we pay attention to when purchasing spindle motors?

Motor: model specifications, functional characteristics, protection type, rated voltage, rated current, rated power, power frequency, insulation class.

Environmental conditions: normal temperature, high temperature, high cold, corrosion, vibration, wind and sand, altitude, electromagnetic pollution, etc.

Purpose: Spindle motor is mainly used for cutting, edging, polishing and polishing of steel, castings, aluminum products, wood, marble, glass and other materials.

Control system: control modes include manual, automatic, remote control, stand-alone operation, and centralized control of the production line.
