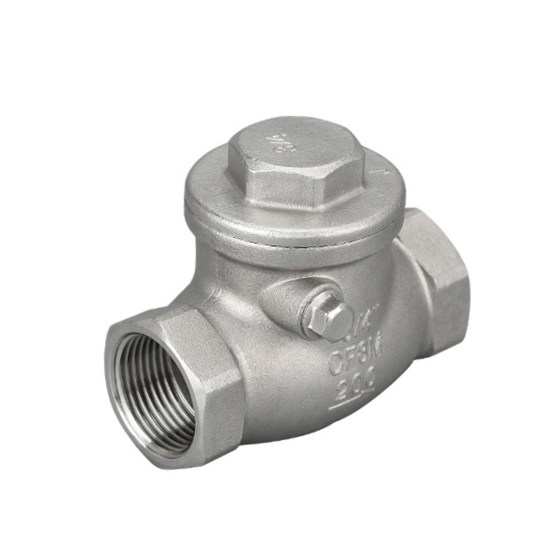

2" Stainless Steel Swing Check Valve, Horizontal

0 reviews • Write a review

from

$105.76

Ex Tax: $105.76

Stock: In Stock
Model: RDDLZ-SSSCV-02
Weight: 1.00
SKU: RDDLZ-SSSCV-02

Available Options

Short Description

Material

Thread

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 inch stainless steel check valve is a horizontal check valve used to regulate the flow of fluid or gas in the pipeline, with DN50, SS304/316, BSP/BSPT/NPT three thread standard. 200WOG swing check valve can withstand high temperature and high pressure, suitable for wastewater treatment plants, oil and gas refineries, and chemical processing facilities.

Specifications

Model: RDDLZ-H14W
Check Valve Type: Swing
Shape: Horizontal
Nominal Diameter: 2 inch (50mm)
Working Pressure: 200 WOG
Product Material: 304/316 Stainless Steel
Connection Form: Thread
Thread Standard: BSP, BSPT, NPT
Temperature Range: -20°C~300°C
Weight: 1.31kg
Applicable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid

Details

Main Part Materials
NO.	Part Name	Materials	QTY
1	BODY	CF8/CF8M	1
2	DISC	CF8/CF8M	1
3	HANGGER PIN	SS304/SS316	1
4	JOINT GASKET	PTRE/RPTFE	1
5	CAP	CF8/CF8M	1
Dimension (Unit: mm)
DN	D	L±1.5	H
50	47.6	134	71

Applications

A stainless steel swing check valve is a type of valve used to regulate the flow of fluids or gases in a pipeline. It is commonly used in applications where backflow prevention is necessary, such as in wastewater treatment plants, oil and gas refineries, and chemical processing facilities.

Tips: Stainless Steel Swing Check Valve Applications in HVAC Systems

Stainless steel swing check valves are commonly used in HVAC (Heating, Ventilation, and Air Conditioning) systems to prevent the backflow of fluids and gases. These valves are typically used in applications such as chilled water systems, hot water systems, and air handling units.

One of the primary advantages of using stainless steel swing check valves in HVAC systems is their corrosion resistance. HVAC systems often use water, which can contain minerals and other impurities that can cause corrosion over time. Stainless steel is highly resistant to corrosion and can withstand the harsh conditions often found in HVAC systems.

Another advantage of stainless steel swing check valves in HVAC systems is their low-pressure drop. These valves are designed to allow for high flow rates while minimizing turbulence and pressure loss. This is important in HVAC systems, where energy efficiency is a key concern. Stainless steel swing check valves are also easy to install and maintain. They typically require minimal maintenance and can be easily accessed for inspection or repair.
