Note: This check valve cannot be used for drinking water.

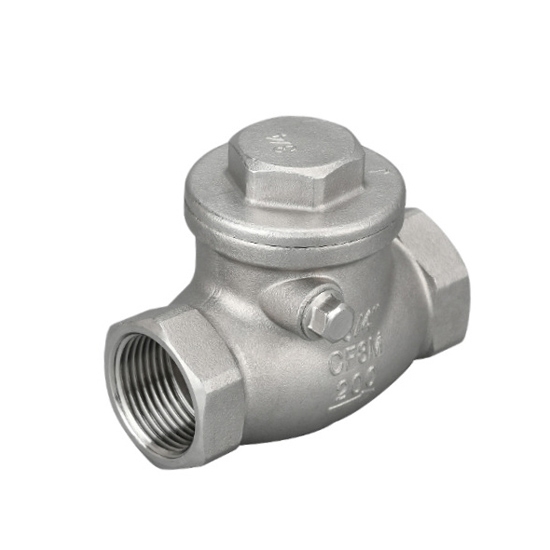

Low price 1/2 inch (DN15) stainless steel swing check valve comes with 200 WOG working pressure and optional BSP/BSPT/NPT thread. Horizontal check valve, durable and low maintenance, designed for piping system to prevent backflow of water, oil and gas.

Specifications

• Model: RDDLZ-H14W
• Check Valve Type: Swing
• Shape: Horizontal
• Nominal Diameter: 1/2 inch (15mm)
• Working Pressure: 200 WOG
• Product Material: 304/316 Stainless Steel
• Connection Form: Thread
• Thread Standard: BSP, BSPT, NPT
• Temperature Range: -20°C~300°C
• Weight: 0.235kg
• Applicable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid

Details

Applications

A stainless steel swing check valve is a type of valve used to regulate the flow of fluids or gases in a pipeline. It is commonly used in applications where backflow prevention is necessary, such as in wastewater treatment plants, oil and gas refineries, and chemical processing facilities.

Tips: What is a stainless steel swing check valve?

A stainless steel swing check valve is a type of valve used in piping systems to prevent the backflow of fluids or gases. It is constructed of stainless steel, a material known for its resistance to corrosion and high-temperature applications. The valve consists of a hinged disc or flap that swings freely on a pivot or hinge. The disc swings open in the forward flow direction, allowing fluid or gas to pass through the valve, but swings closed when the flow reverses direction, preventing backflow. The valve operates automatically, without the need for external power, and is typically used in applications where low-pressure drop and high flow rates are required. Stainless steel swing check valves are commonly used in a variety of industrial applications, including oil and gas, chemical, water treatment, and HVAC. They are available in a range of sizes, pressure ratings, and materials to suit different applications and operating conditions.
