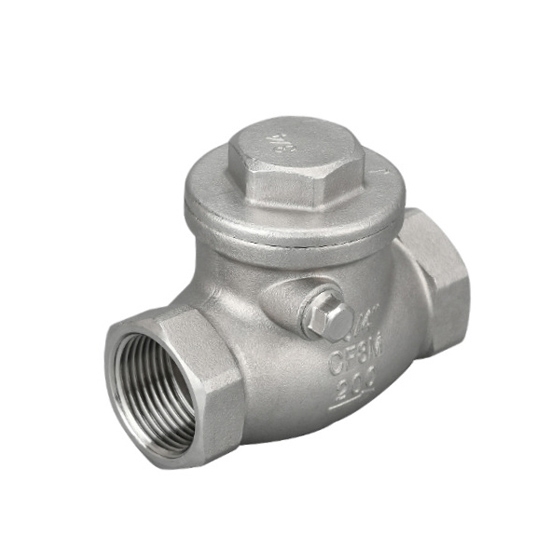

1-1/4" Stainless Steel Swing Check Valve, Horizontal

0 reviews • Write a review

from

$70.38

Ex Tax: $70.38

Stock: In Stock
Model: RDDLZ-SSSCV-114
Weight: 1.00
SKU: RDDLZ-SSSCV-114

Available Options

Short Description

Material

Thread

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This check valve cannot be used for drinking water.

High quality 1-1/4” swing check valve for sale online. Horizontal check valve with 304/316 stainless steel, DN 32 and 200 WOG working pressure and three thread standard (BSP/BSPT/NPT), usually used in HVAC systems, water treatment plants and industrial processes.

Specifications

Model: RDDLZ-H14W
Check Valve Type: Swing
Shape: Horizontal
Nominal Diameter: 1-1/4 inch (32mm)
Working Pressure: 200 WOG
Product Material: 304/316 Stainless Steel
Connection Form: Thread
Thread Standard: BSP, BSPT, NPT
Temperature Range: -20°C~300°C
Weight: 0.695kg
Applicable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid

Details

Main Part Materials
NO.	Part Name	Materials	QTY
1	BODY	CF8/CF8M	1
2	DISC	CF8/CF8M	1
3	HANGGER PIN	SS304/SS316	1
4	JOINT GASKET	PTRE/RPTFE	1
5	CAP	CF8/CF8M	1
Dimension (Unit: mm)
DN	D	L±1.5	H
32	31	100	55

Applications

A stainless steel swing check valve is a type of valve used to regulate the flow of fluids or gases in a pipeline. It is commonly used in applications where backflow prevention is necessary, such as in wastewater treatment plants, oil and gas refineries, and chemical processing facilities.

Tips: Swing Check Valve Applications in Oil and Gas Industry

Swing check valves are commonly used in the oil and gas industry due to their ability to prevent backflow, protect equipment, and provide reliable and efficient flow control. Some common applications of swing check valves in the oil and gas industry include:

Pump and compressor discharge: Swing check valves are used to prevent backflow and protect pumps and compressors from damage caused by reverse flow.
Pipeline protection: Swing check valves are installed in pipelines to prevent backflow and protect equipment such as meters and valves.
Separator systems: Swing check valves are used in separator systems to ensure proper flow control and prevent backflow.
Refineries: Swing check valves are used in refineries to control the flow of materials through different stages of the refining process.
Offshore platforms: Swing check valves are used in offshore platforms to control flow and prevent backflow in various applications such as wellheads, pipelines, and seawater systems.
