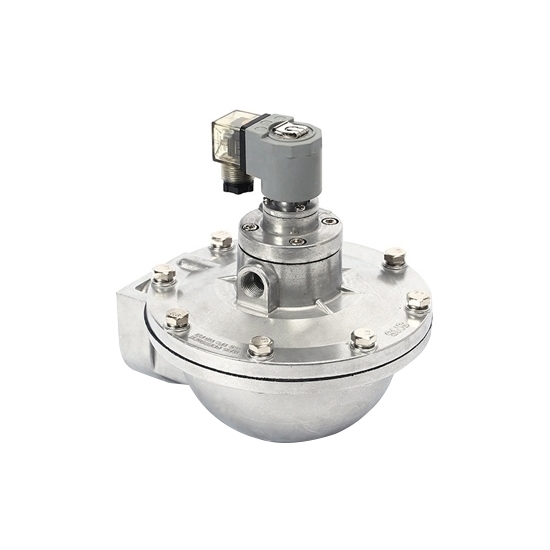

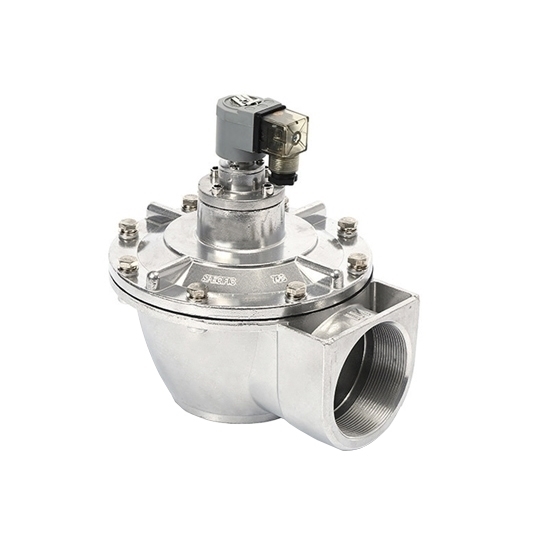

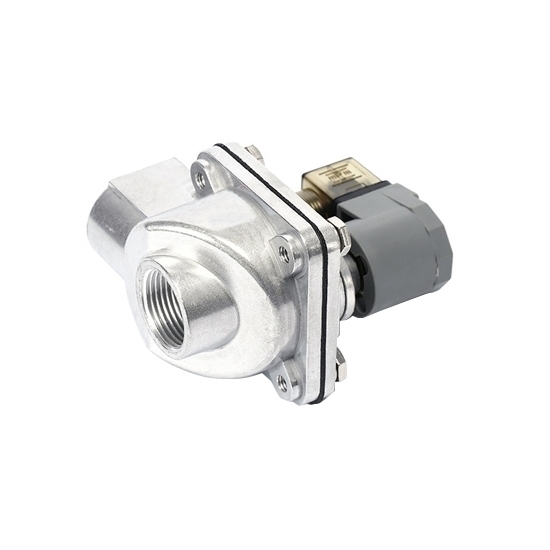

3" Pulse Solenoid Valve For Dust Collector

0 reviews • Write a review

from

$171.79

Ex Tax: $171.79

Stock: In Stock
Model: RDDLZ-PULSE-76S
Weight: 1.00
SKU: RDDLZ-PULSE-76S

Available Options

Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This pulse valve cannot be used for drinking water.

RDDLZ pulse solenoid valve is a type of valve used in various industrial applications, particularly in systems that involve the control of gases, such as air or other gases. Pulse valves are commonly used in dust collection systems, baghouse filters, and similar applications to help clean and maintain the efficiency of these systems.

Specification

Model: RDDLZ-SMFZ-76S
Port Size: G3 inch
Connection Type: Threaded Type
Channel Position: Right Angle
Flow Direction: Unidirectional
Applicable Media: Air
Voltage (Optional): AC110V, AC220V, DC24V
Coil Power: 20VA
Temperature: -5~60℃
Working Pressure: 0.3~0.8MPa
Max. Pressure: 1.0MPa
Relative Humidity: ≤80%RH
Diaphragm Life: More Than 1 Million Times
Material: Aluminum Alloy (Body), NBR (Seal)

Dimension (Unit: mm)

Model	Port Size	A	B	C
RDDLZ-SMFZ-76P	G3 inch	232	201	245

Details

Tips: Where are pulse valves used?

Pulse valves are commonly used in industrial applications, particularly in systems that involve the control of air or gas flow. These valves operate based on a pulsed or intermittent flow of compressed air and are primarily found in applications such as dust collection systems, pneumatic conveying systems, and air filtration units.

Dust Collection Systems: Pulse valves are a critical component in dust collectors, where they help clean filters by releasing short bursts of compressed air to dislodge accumulated dust and particulate matter. This ensures efficient filtration and prolongs the life of filter elements.
Pneumatic Conveying Systems: Pulse valves play a vital role in pneumatic conveying systems, used to transport bulk materials like powders and granules. They help regulate the flow of air and maintain system efficiency.
Air Filtration Units: In various industrial processes, air filtration units employ pulse valves to ensure clean air by periodically cleaning filter media.

Overall, pulse valves are essential in environments where controlled bursts of compressed air are required to maintain system performance, particularly in the presence of dust and particulate pollutants.
