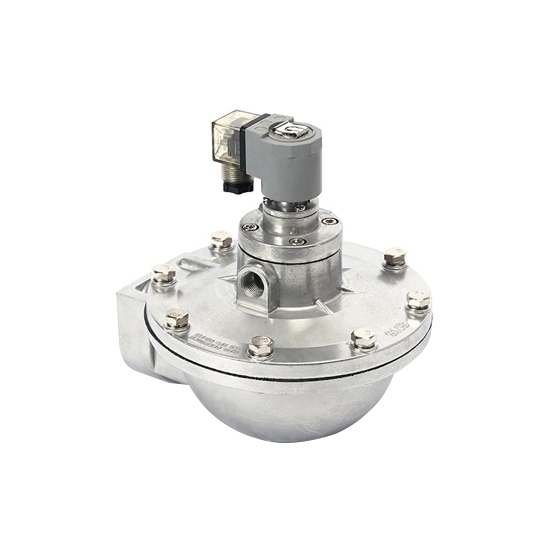

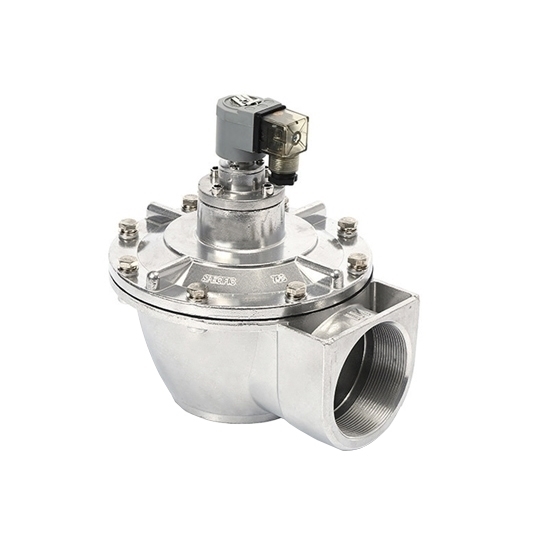

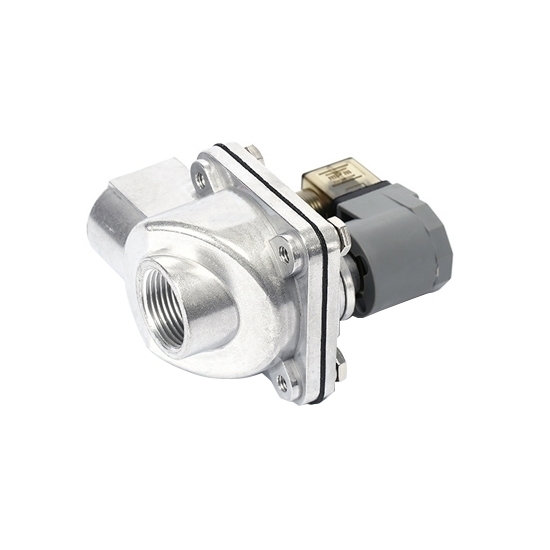

1" Pulse Solenoid Valve For Dust Collector

0 reviews • Write a review

from

$69.39

Ex Tax: $69.39

Stock: In Stock
Model: RDDLZ-PULSE-25P
Weight: 1.00
SKU: RDDLZ-PULSE-25P

Available Options

Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This pulse valve cannot be used for drinking water.

Pulse solenoid valve is used in industrial applications, particularly in dust collection and air filtration systems. This cleaning process helps remove accumulated dust and particulate matter, ensuring the efficient operation of the filtration system.

Specification

Model: RDDLZ-SMFZ-25P
Port Size: G1 inch
Connection Type: Threaded Type
Channel Position: Right Angle
Flow Direction: Unidirectional
Applicable Media: Air
Voltage (Optional): AC110V, AC220V, DC24V
Coil Power: 20VA
Temperature: -5~60℃
Working Pressure: 0.3~0.8MPa
Max. Pressure: 1.0MPa
Relative Humidity: ≤80%RH
Diaphragm Life: More Than 1 Million Times
Material: Aluminum Alloy (Body), NBR (Seal)

Dimension (Unit: mm)

Model	Port Size	A	B	C
RDDLZ-SMFZ-25P	G1 inch	104	82	126.5

Details

Tips: What is a pulse solenoid valve?

A pulse solenoid valve is a type of electromechanical valve used to control the flow of fluids, such as gases or liquids, through a system. It operates by using an electromagnetic coil to open and close a plunger or piston, regulating the flow of the fluid. What makes a pulse solenoid valve unique is its ability to control the flow in a rapid and intermittent manner. This is achieved by applying short pulses of electrical current to the solenoid coil, causing the plunger to move back and forth, alternately blocking and allowing the flow of the fluid. Pulse solenoid valves are commonly employed in applications where precise control of fluid flow is required, such as in medical devices, analytical instruments, and certain industrial processes. Their rapid response and precise modulation capabilities make them valuable tools in various fields where fluid control is crucial.
