MCX 4 Pin RF Coaxial Connector, PCB Mount

0 reviews • Write a review

from

$42.89

Ex Tax: $42.89

Stock: In Stock
Model: RDDLZ-FFCC-MCX4PIN
Weight: 1.00
SKU: RDDLZ-FFCC-MCX4PIN

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

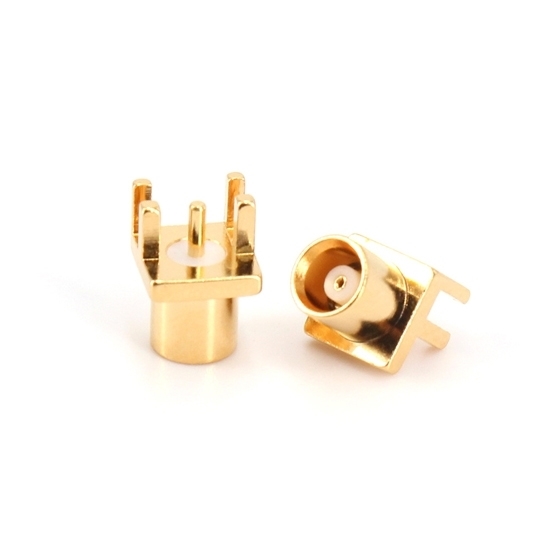

MCX 4 pin female (jack) radio frequency (RF) coaxial connectors provide reliable and secure connections, minimizing signal loss and interference. With their precise construction and compatibility with coaxial cables, they offer durability and efficiency in transmitting radio frequency signals for various applications, especially in TV and communication systems.

Specification

Model: RDDLZ-MCXKE-8TB
Frequency Range: DC~6GHz
Standing Wave Ratio (VSWR): 1.20:1 (Max.)
Impedance: 50 Ohm
Insertion Loss: 0.25dB (Max.)
Dielectric Withstand Voltage: 750V
Insulation Resistance: ≥5000 Ohm
Connector Type A: MCX
Connector Type B: PCB Board (Printed Circuit Board)
Working Temperature: -55℃~+125℃
Inner Conductor Material: Gold Plated Bronze
Outer Conductor Material: Gold Plated Brass
Insulator: PTFE
Service Life: ≥500

Dimension (Unit: mm)

φD1: 8.3mm/0.326"
φD2: 0.3mm/0.011"
φD3: 2.6mm/0.102"
φD4: 4.8mm/0.188"

Tips: Why are RF coaxial connectors important in communication systems?

RF coaxial connectors play a crucial role in communication systems due to their ability to establish secure and efficient connections between various electronic components. These connectors ensure a reliable transfer of radio frequency signals, maintaining signal integrity and minimizing signal loss. The coaxial design, with a central conductor surrounded by insulating material and an outer conductor, provides shielding against electromagnetic interference (EMI) and radio frequency interference (RFI).

In communication systems, especially in high-frequency applications, such as telecommunications, broadcasting, and radar systems, maintaining signal quality is paramount. RF coaxial connectors facilitate this by offering a standardized and impedance-matched interface, preventing signal reflections and ensuring optimal performance. Their versatility in accommodating different frequencies and applications makes them fundamental in establishing the connectivity backbone for a wide range of electronic devices and systems, contributing to the seamless transmission of information in modern communication networks.
