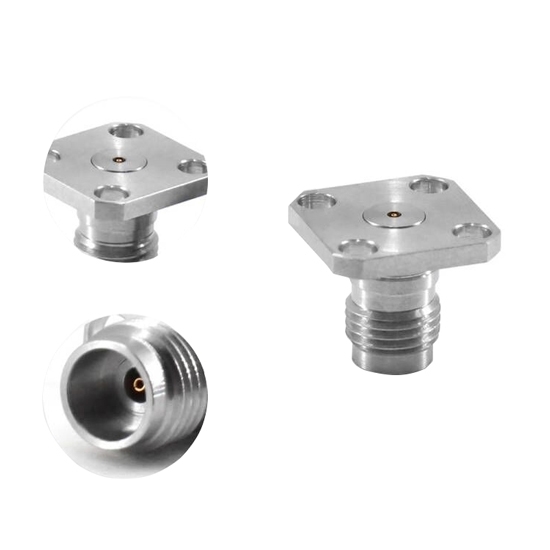

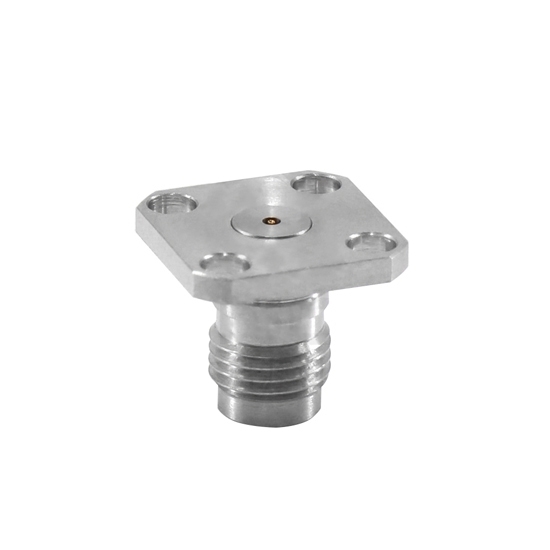

1.85mm Female RF Coaxial Connector, Flange Mount

0 reviews • Write a review

from

$109.89

Ex Tax: $109.89

Stock: In Stock
Model: RDDLZ-FFCC-18FLANGE
Weight: 1.00
SKU: RDDLZ-FFCC-18FLANGE

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1.85mm female (jack) RF coaxial connector is frequently employed in TV antenna jacks. Flange mount options offer flexibility in circuit board applications. With a versatile design, the RF coaxial jack connector ensures seamless signal transmission in electronic communication systems, making it an integral component in modern connectivity solutions.

Specification

Model: RDDLZ-18FS23F01-M
Frequency Range: DC~67GHz
Standing Wave Ratio (VSWR): 1.25:1 (Max.)
Impedance: 50 Ohm
Insertion Loss: 0.30dB (Max.)
Dielectric Withstand Voltage: 1000V
Insulation Resistance: ≥5000 Ohm
Connector Type A: Detachable Flange
Connector Type B: 1.85mm-Female
Working Temperature: -55℃~+165℃
Inner Conductor Material: Bronze Plated Gold Plated
Outer Conductor Material: Stainless Steel Passivated
Insulator: PTFE
Service Life: ≥500

Dimension (Unit: mm)

Tips: What is an RF coaxial connector?

An RF coaxial connector is a crucial component in electronic communication systems designed to enable the transfer of radio frequency signals between devices while maintaining a shielded and reliable connection. Consisting of a central conductor, insulator, and an outer conductor, these connectors ensure impedance matching and minimize signal interference. They come in various types, such as SMA, BNC, and N connectors, catering to different applications and frequencies.

Coaxial connectors are widely used in telecommunications, broadcasting, and other electronic systems where radio frequency signals play a vital role. Their threaded or snap-on mechanisms facilitate quick and secure connections, while the coaxial design provides shielding against electromagnetic interference (EMI) and radio frequency interference (RFI). These connectors are instrumental in establishing dependable links, making them indispensable in diverse industries relying on high-frequency communication.
