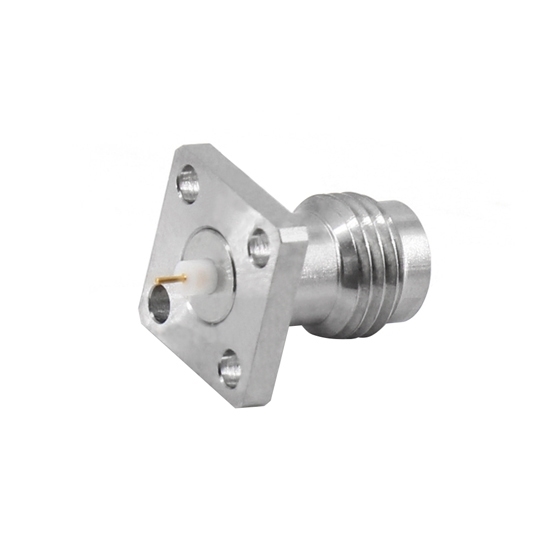

2.4mm Female RF Coaxial Connector, Flange Mount

0 reviews • Write a review

from

$81.29

Ex Tax: $81.29

Stock: In Stock
Model: RDDLZ-FFCC-24FLANGE
Weight: 1.00
SKU: RDDLZ-FFCC-24FLANGE

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2.4mm female (jack) RF coaxial connector is frequently employed in TV antenna. Flange mount options offer flexibility in PCB circuit board applications. With a versatile design, the low price RF coax connector ensures seamless signal transmission in electronic communication systems, making it an integral component in modern connectivity solutions.

Specification

Model: RDDLZ-24FP403F02-M
Frequency Range: DC~50GHz
Standing Wave Ratio (VSWR): 1.15:1 (Max.)
Impedance: 50 Ohm
Insertion Loss: 0.25dB (Max.)
Dielectric Withstand Voltage: 1000V
Insulation Resistance: ≥5000 Ohm
Connector Type A: Media Through Wall
Connector Type B: 2.4mm-Female
Working Temperature: -55℃~+165℃
Inner Conductor Material: Bronze Plated Gold Plated
Outer Conductor Material: Stainless Steel Passivated
Insulator: PTFE
Service Life: ≥500

Dimension (Unit: mm)

φD1: 1.67mm/0.158"
φD2: 0.3mm/0.012"
L1: 1.4mm/0.055"
L2: 1.5mm/0.059"

Tips: How does an RF coaxial connector work?

An RF coaxial connector facilitates the transmission of radio frequency signals between electronic devices, offering a reliable and shielded connection. It comprises a central conductor, typically a metal wire or pin, surrounded by an insulating material, and an outer conductor or shield. The central conductor carries the signal, while the outer conductor acts as a ground and shields against electromagnetic interference (EMI) or radio frequency interference (RFI).

The connectors are designed to maintain a consistent impedance, crucial for efficient signal transmission. When two connectors are mated, their central conductors align, establishing a continuous path for the signal. The threaded or bayonet coupling mechanism ensures a secure and stable connection. The coaxial design minimizes signal loss and interference, making it suitable for various applications, including telecommunications, broadcasting, and high-frequency electronic systems. Overall, RF coaxial connectors play a pivotal role in maintaining signal integrity and preventing external interference in electronic communication systems.
