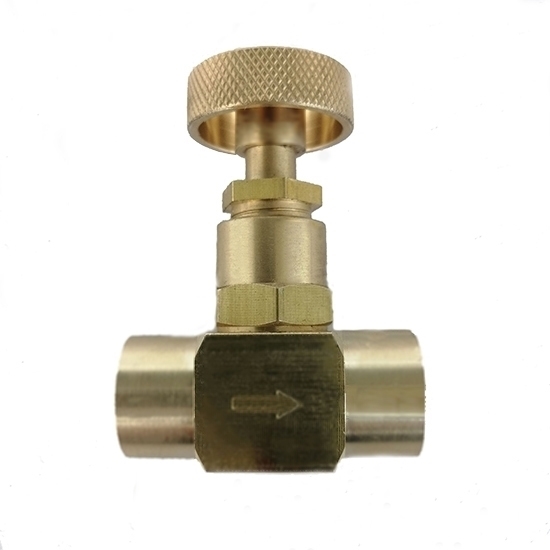

3/8" NPT Brass Needle Valve, DN10

0 reviews • Write a review

from

$61.06

Ex Tax: $61.06

Stock: In Stock
Model: RDDLZ-BNV-308
Weight: 1.00
SKU: RDDLZ-BNV-308

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This needle valve cannot be used for drinking water.

Get a brass needle valve online, 2-way needle valve with 3/8 inch thread. The high pressure brass needle valve is made of high-grade solid brass, exquisite processing, which can withstand greater pressure than other types of valves.

Features

Smooth and accurate flow control
Reliable leak tight shut off
High pressures up to 1000 psi
Wide temperature range from -20 up to 200°C.
Suitable for a wide variety of media and applications
Application: such as oil refining, chemical industry, pharmaceuticals, petroleum, scientific experiments, electrical engineering devices and instrument measurement pipelines as an advanced connection valve.

Specification

Model: RDDLZ-BNV-FFB0308
Size: 3/8 inch NPT
Nominal diameter: DN10
Material: Brass
Max. pressure: 1000 psi
Working temperature: -20~200℃
Connection: Male, female, double ferrule, flare
Medium: Gas, Oil, Water

Brass Needle Valve Structure

Brass Needle Valve Application

Tips: What is the difference between a ball valve and a needle valve?

Ball valves are designed for on-off operation. Avoid extended periods of throttled operation. Needle valves offer flexible flow control options with designs allowing on-off, throttling, and fine metering operation depending on your needs.
