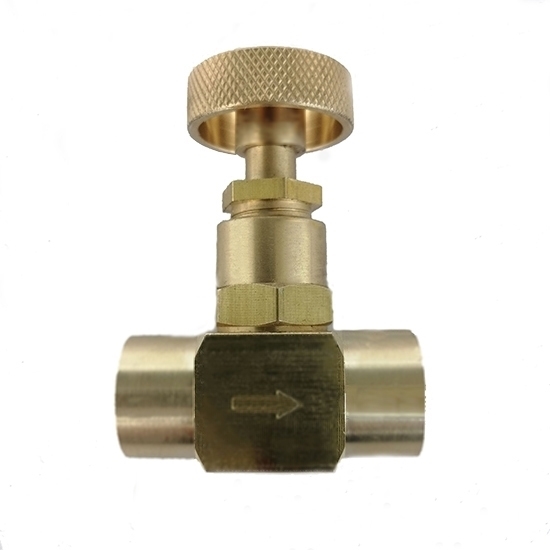

1/4" NPT Brass Needle Valve, DN8

0 reviews • Write a review

from

$55.96

Ex Tax: $55.96

Stock: In Stock
Model: RDDLZ-BNV-104
Weight: 1.00
SKU: RDDLZ-BNV-104

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This needle valve cannot be used for drinking water.

Good price brass needle valve is designed to regulate flow to an instrument or other industrial application, and with 1/4 inch thread. This valve can be used as a reliable shut-off valve, or to accurately control flow rates of clean gases or fluids.

Features

Smooth and accurate flow control
Reliable leak tight shut off
High pressures up to 1000 psi
Wide temperature range from -20 up to 200°C.
Suitable for a wide variety of media and applications
Application: such as oil refining, chemical industry, pharmaceuticals, petroleum, scientific experiments, electrical engineering devices and instrument measurement pipelines as an advanced connection valve.

Specification

Model: RDDLZ-BNV-FFB0104
Size: 1/4 inch NPT
Nominal diameter: DN8
Material: Brass
Max. pressure: 1000 psi
Working temperature: -20~200℃
Connection: Male, female, double ferrule, flare
Medium: Gas, Oil, Water

Brass Needle Valve Structure

Brass Needle Valve Application

Tips: What is a brass needle valve?

Brass needle valves are designed for air or water service up to 150psi (these particular needle valves are NOT designed for welding or CGA applications). They have a metal to metal seat and will allow fine control of flow.
