- Stock: In Stock
- Model: RDDLZ-BAW-165
- Weight: 1.00
- SKU: RDDLZ-BAW-165

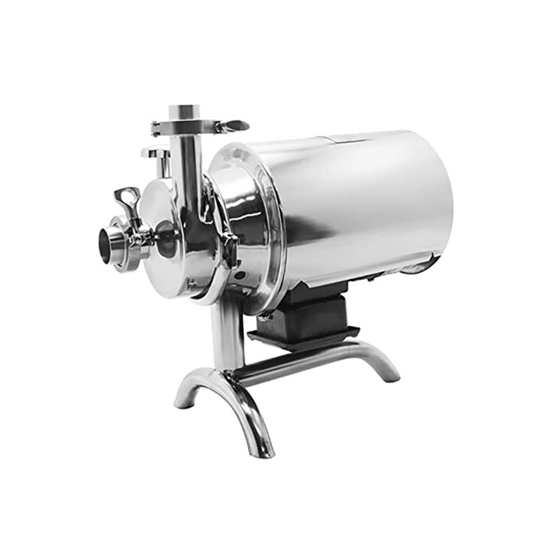

Stainless steel sanitary pump with 15t/ h flow rate, 24m lift (water column), 51mm inlet/ outlet size. It is widely used in food, beverage, pharmaceutical, biological engineering, water treatment, daily chemical, petroleum and chemical industries.
Specification
| Model | RDDLZ-BAW-165 |
| Rated power | 4hp (3kW) |
| Rated voltage | 380V |
| Phase | 3 phase |
| Accessories | Clamp + gasket + quick connector/ Clamp + gasket + sanitary hose joint/ Union |
| Flow rate | 15t/ h |
| Lift (water column) | 24m |
| Inlet/ outlet size | 51mm |
| Outer size | L580mm*W270*H400m |
| Weight | 45kg |
| Warranty | 12 months |

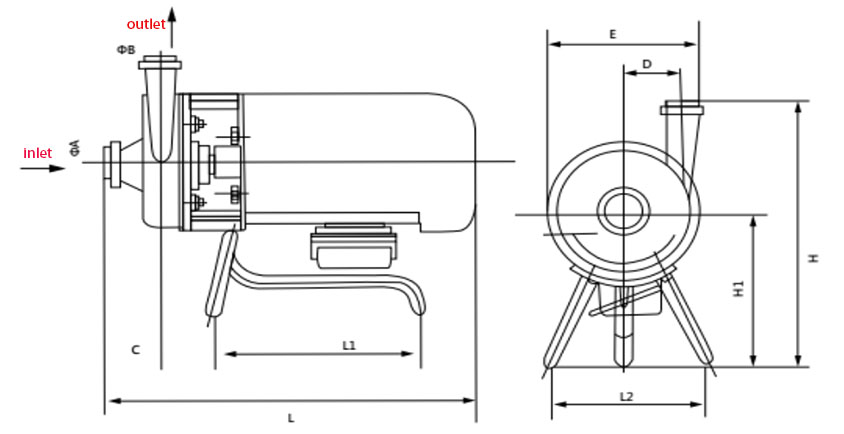

Dimension
| Model | Mounting dimensions (mm) | |||||||||
| A | B | C | D | E | L | L1 | L2 | H | H1 | |
| BAW-165 | 51 | 51 | 95 | 75 | 250 | 600 | 400 | 220 | 450 | 255 |
Product information
Tips: Differences of Stainless Steel Centrifugal Pump and Self-priming Pump.
1. Different composition: the former is composed of 6 parts, and the latter is composed of 5 parts.
2. The starting method is different: the former fills the water inlet pipe and the pump body with water or draws out the air from the water inlet pipe, and the latter adds start-up circulating water to the pump body.
3. The device is different: the former needs a bottom valve and a suction device at the outlet of the water inlet pipe, while the latter needs a filter.
4. Different using: the former is liquid conveying, with a large flow rate and field control range, while the latter can change water into spray, with stable operation and convenient maintenance.
