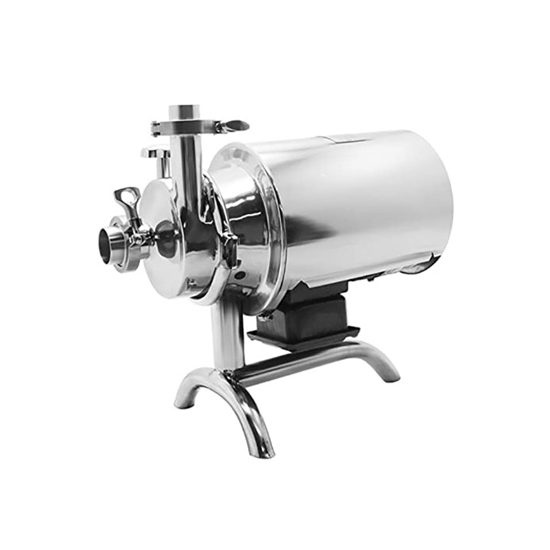

1hp (0.75kW) Stainless Steel Centrifugal Pump
from
$489.84
Ex Tax: $489.84
- Stock: In Stock
- Model: RDDLZ-BAW-120
- Weight: 1.00
- SKU: RDDLZ-BAW-120
1hp stainless steel centrifugal pump for sales, which with 3t/ h flow rate, 18m lift (water column). The ss centrifugal pump is widely used in food, beverage, pharmaceutical, biological engineering, water treatment, daily chemical, petroleum and chemical industries.
Specification
| Model | RDDLZ-BAW-120 |
| Rated power | 1hp (0.75kW) |
| Rated voltage | 220V/ 380V |
| Phase | 1 phase/ 3 phase |
| Accessories | Clamp + gasket + quick connector/ clamp + gasket + sanitary hose joint/ Union |
| Flow rate | 3t/ h |
| Lift (water column) | 18m |
| Inlet/ outlet size | 38/ 32mm |
| Outer size | L420mm*W220*H320m |
| Weight | 22kg |
| Warranty | 12 months |

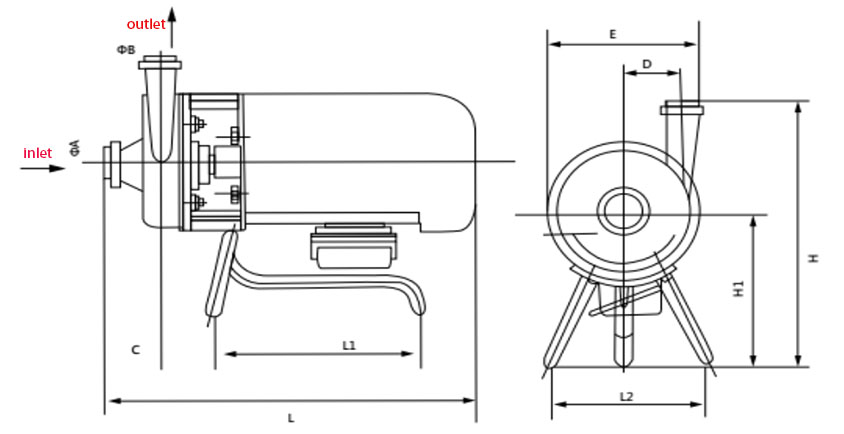

Dimension
| Model | Mounting dimensions (mm) | |||||||||
| A | B | C | D | E | L | L1 | L2 | H | H1 | |
| BAW-120 | 38 | 32 | 55 | 42 | 190 | 450 | 300 | 170 | 310 | 190 |
Product information
Tips: Working Conditions of Stainless Steel Centrifugal Pump.
- Thin, clean, non-condensing, non-explosive, liquid without solid particles or fibers.
- Liquid temperature: Normal temperature type -15°C to +70°C, hot water type +70°C to +110°C.
- Maximum ambient temperature: +40℃.
- Maximum operating pressure: 10 bar, the maximum inlet pressure is limited by the maximum operating pressure.
- Medium acidity and alkalinity: PH4~9.
