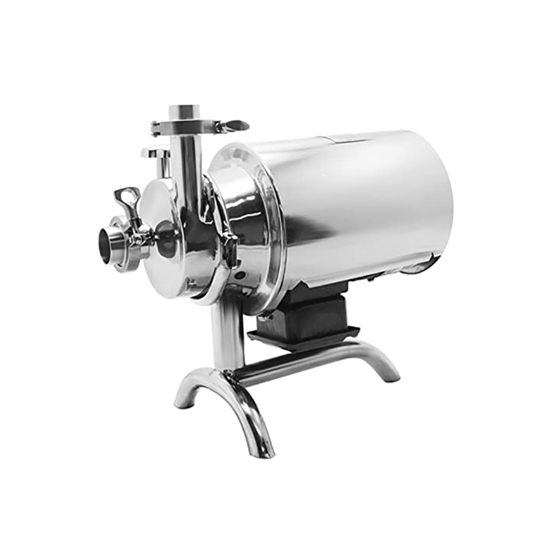

2hp (1.5kW) Stainless Steel Centrifugal Pump
from
$776.92
Ex Tax: $776.92
- Stock: In Stock
- Model: RDDLZ-BAW-150
- Weight: 1.00
- SKU: RDDLZ-BAW-150
Stainless steel sanitary pump with 1.5kW, which features 18m lift (water column), clamp + gasket + quick connector/ clamp + gasket + sanitary hose joint/ union three kinds of accessories for selection.
Specification
| Model | RDDLZ-BAW-150 |
| Rated power | 2hp (1.5kW) |
| Rated voltage | 220V/ 380V |
| Phase | 1 phase/ 3 phase |
| Accessories | Clamp + gasket + quick connector/ clamp + gasket + sanitary hose joint/ Union |
| Flow rate | 5t/ h |
| Lift (water column) | 24m |
| Inlet/ outlet size | 38mm |
| Outer size | L500mm*W260*H370m |
| Weight | 35kg |
| Warranty | 12 months |

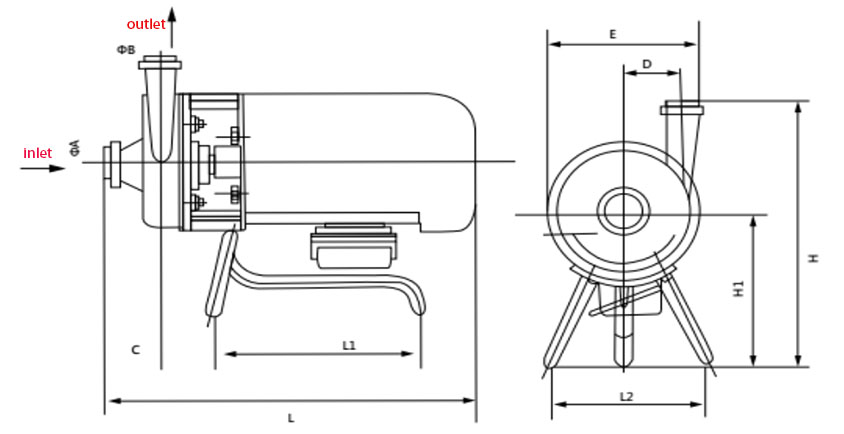

Dimension
| Model | Mounting dimensions (mm) | |||||||||
| A | B | C | D | E | L | L1 | L2 | H | H1 | |
| BAW-150 | 38 | 38 | 85 | 50 | 200 | 510 | 350 | 180 | 355 | 200 |
Product information
Tips: How to Install Stainless Steel Centrifugal Pump?
1. The surface of the installed base must be flat, clean and find a place which can able to bear the corresponding load.
2. Use anchor bolts where it needs to be fixed.
3. For pumps installed vertically, the anchor bolts must have sufficient strength.
4. If installed vertically, the motor must be located above the pump.
5. When fixing on the wall, pay attention to aligning and centering.
