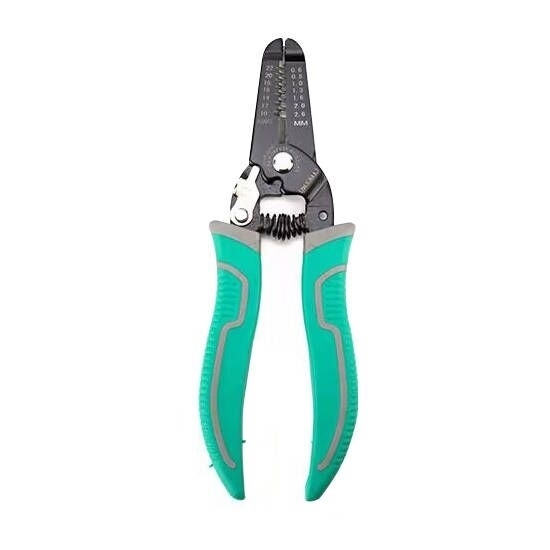

Wire Stripping Tool, 12/14/16/22 Gauge

0 reviews • Write a review

from

$45.11

Ex Tax: $45.11

Stock: In Stock
Model: RDDLZ-WST-01
Weight: 1.00
SKU: RDDLZ-WST-01

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Reliable 22 AWG wire stripper for sale online, 10/12/14/16/18/20 AWG are also available. The CR-V steel wire stripping tool removes the insulation or outer sheath of wires, widely used in electrical engineering, electronics and telecommunications.

Specifications

Model: RDDLZ-DEEALL
Size: 7 inch
Overall Length: 178mm
Width Outside Handle: 60mm
Handle Length: 105mm
Jaw Length: 40mm
Maximum Opening: 35mm
Weight: 110g

Dimension (Unit: mm)

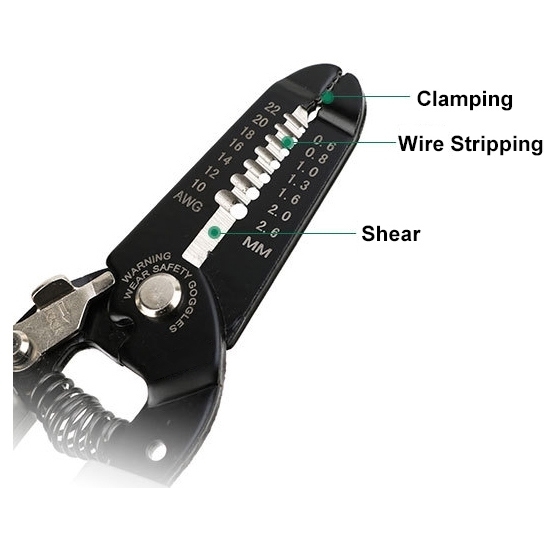

Stripping Range

AWG	mm	mm²
10	2.6	5.26
12	2	3.332
14	1.6	2.075
16	1.3	1.318
18	1	0.81
20	0.8	0.566
22	0.6	0.324

Applications

Wire strippers are a versatile and essential tool used in a variety of applications, such as electrical work, electronics, and telecommunications. They are primarily used for removing the insulation from electrical wires to prepare them for connections, such as joining wires together, attaching them to terminals or devices, or repairing damaged wires.

Suitable Wire Types

Tips: Wire Stripper vs. Crimping Pliers

Function: Wire strippers are used for removing the insulation from electrical wires while crimping pliers are used for attaching connectors or terminals to the end of wires.
Design: Wire strippers have a set of jaws with a cutting edge, a stripping notch, and a gripping edge. Crimping pliers have a set of jaws with a crimping die, which is used to compress the connector or terminal onto the wire.
Use: Wire strippers are used before crimping to prepare the wire for attaching the connector or terminal. Crimping pliers are used after stripping the wire to attach the connector or terminal securely.
Types: Wire strippers come in different sizes and designs to accommodate a wide range of wire sizes and insulation types. Crimping pliers also come in different sizes and designs to accommodate a wide range of connector and terminal sizes.
Applications: Wire strippers are used in a variety of applications, such as electrical work, electronics, and telecommunications.
Crimping pliers are primarily used in electrical and electronics work, such as wiring systems for buildings, appliances, and machinery.
