Nema 14 Stepper Motor Linear Actuator, 2 Phase, 2.7V, 1A

0 reviews • Write a review

from

$139.46

Ex Tax: $139.46

Stock: In Stock
Model: RDDLZ-STEPL-271
Weight: 1.00
SKU: RDDLZ-STEPL-271

Available Options

Short Description

Motor Type

Motor Screw Lead

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

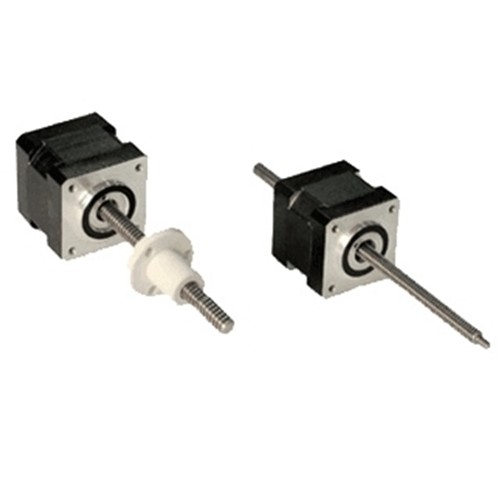

This Nema 14 stepper motor linear actuator has 2 phase stepper motor and lead screw, available in external shaft style and non-captive shaft style version. Rated current of 1A and rated voltage of 2.7V, there are 9 different lead screw specifications for selection.

Stepper Motor Linear Actuator Parameters

Model Type	External Shaft	Non-Captive Shaft
	35H34-1004AST	35H34-1004GTS
Weight	3 kg
Length	34 mm
Phase	2 phase
Step Angle	1.8°
Rated Voltage	2.7 V
Rated Current	1 A
Resistance	2.7 Ω
Holding Torque	17 Oz-in
Number of Leads	4
Rotor Inertia	14 g-cm²

Select Leadscrew

Choose your stepper motor linear actuator screw from one of the available options:

Screw Diameter		Lead		Travel Per 1.8 Step
(in)	(mm)	(in/rev)	(mm/rev)	(in/step)	(mm/step)
0.315	8	0.079	2	0.00039	0.01
0.315	8	0.157	4	0.00079	0.02
0.315	8	0.315	8	0.00157	0.04
Note: Screw of 8mm diameter is made of copper.

Stepper Motor Linear Actuator Dimension (Unit=mm)

1. Non-captive shaft style

L=34mm

2. External shaft style

L=34mm

Details

Tips: Stepper linear actuator can normally start impulse frequency in no load conditions
Stepper motor linear actuator can normally start impulse frequency in no load conditions. If the pulse frequency is higher than the value, the motor can be started, but the lost step or a plug may occur. The start frequency should be lower in the load condition. If the motor is to be rotated at a high speed, the pulse frequency should have an acceleration process. The starting frequency is low and it then will reach the expected high frequency according to the fixed acceleration.
