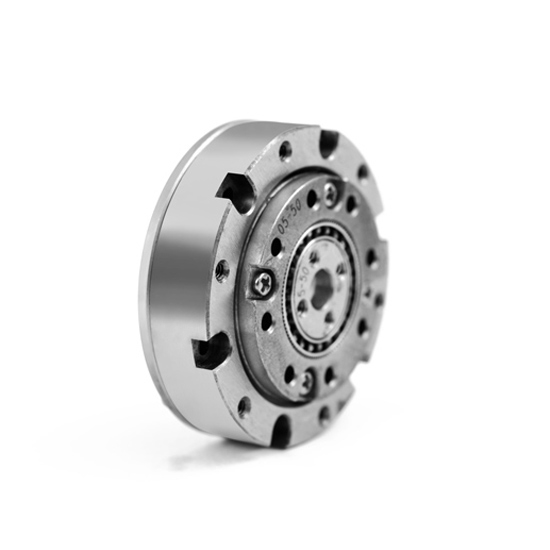

32 Mm Strain Wave Harmonic Drive Gearbox, Ratio 30~80

0 reviews • Write a review

from

$488.33

Ex Tax: $488.33

Stock: In Stock
Model: RDDLZ-HD-32
Weight: 1.00
SKU: RDDLZ-HD-32

Available Options

Short Description

Gear Ratio

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low price 32mm harmonic drive is a strain wave gear that provides high transmission accuracy and supports a single-stage high reduction ratio with low inertia. The harmonic drive gearbox works with a 30/50/80 gear ratio, and is the simplest solution for your high-precision motion control applications.

Features

The lightweight strain wave harmonic drive gearbox has an ultra-thin hollow, compact and simple structure.
Excellent positioning accuracy and rotation accuracy.
Harmonic gearing with a high torque capacity and a high gear ratio is available.
Special for wrist joint robot.

Specifications

Model: RDDLZ-SHD-05
Diameter: 32 mm
Thickness: 10.5 mm
Gear type: Cylindrical gear reducer
Installation form: Horizontal
Input speed: 4000 rpm
Rated power: 0.1 kW
Output speed: 0~500 rpm
Available torque: 500 N.m
Number of stages: Double-stage
Gear ratio: 30, 50, 80, other gear ratios please contact us.

Parameters

Gear ratio	30	50	80
Rated torque when input 2000r/min (N.m)	0.30	0.44	0.72
Allowable peak torque at start and stop (N.m)	0.60	1.10	1.50
Maximum allowable average load torque (N.m)	0.45	0.60	1.00
Momentary allowable maximum torque (N.m)	1.10	2.00	2.80
Allowable maximum input speed (r/min)	10000
Allowable average input speed (r/min)	6500
Moment of inertia (1/4GD) (kgcm²)	2.5x10^-4
Arc seconds	≤20	≤10
Design life (hour)	10000

32mm strain wave harmonic drive gearbox dimensions (unit: mm)

Strain wave harmonic drive gearbox applications

Tips: The composition of gear transmission

Rigid wheel: rigid internal gear of harmonic drive usually 2 teeth more than the flexible wheel, usually fixed on the casing.
Flexible wheel: a thin cup-shaped metal elastic component with a gear on the outer ring of the opening, which deforms with the rotation of the wave generator, and is usually connected with the output shaft.
Wave generator: the wave generator of the harmonic drive consists of an elliptical cam and a flexible bearing, usually connected to the input shaft. The inner ring of the flexible bearing is fixed on the cam, and the outer ring can be elastically deformed into an ellipse through the ball.
