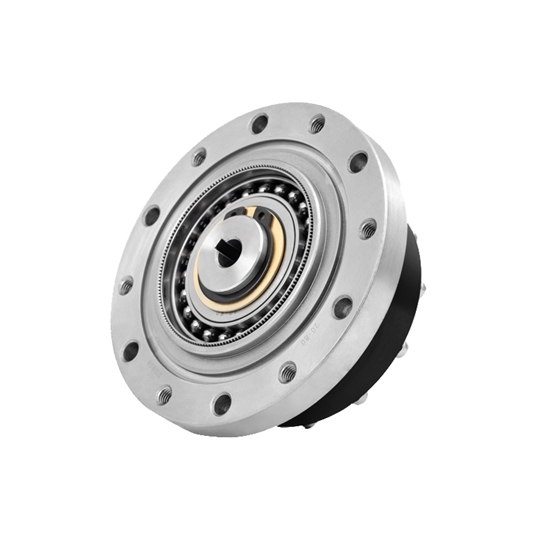

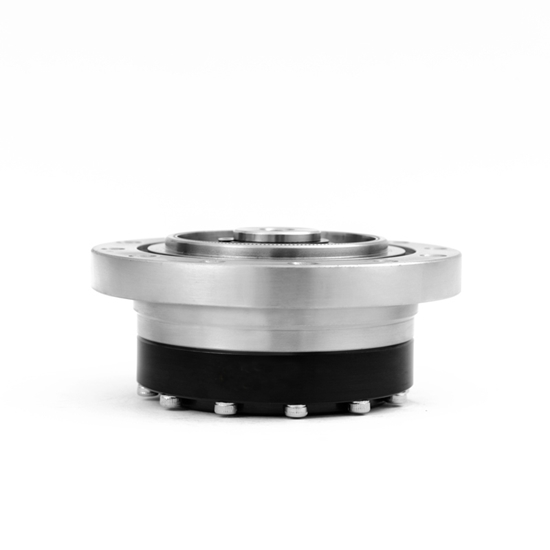

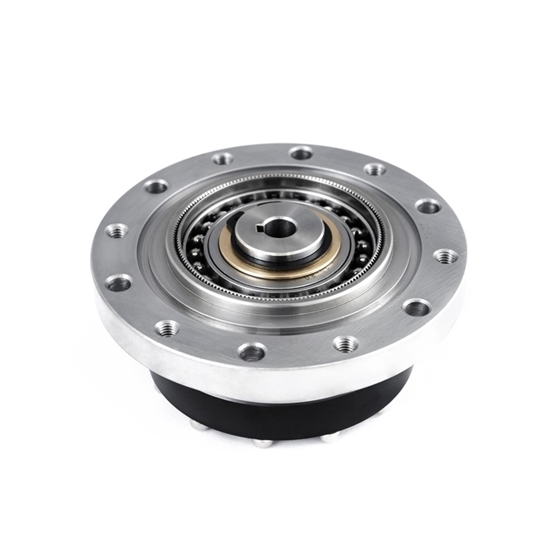

107 Mm Strain Wave Harmonic Drive Gearbox, Ratio 30~100

0 reviews • Write a review

from

$558.95

Ex Tax: $558.95

Stock: In Stock
Model: RDDLZ-HD-107
Weight: 1.00
SKU: RDDLZ-HD-107

Available Options

Gear Ratio

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy a low price harmonic drive gearbox online. 30/50/80/100 gear ratio is provided. 107 mm harmonic reducer provides high transmission accuracy and supports a high reduction ratio with low inertia, commonly used for industrial robots, CNC equipment, medical instruments, and the military industry.

Features

It is a strain wave harmonic drive gearbox with high rigidity, no gear backlash and coaxial input and output.
The gearbox features excellent positioning accuracy and rotation accuracy.
Harmonic reducer with a high torque capacity and a high gear ratio is available.
107 mm strain wave gearbox is designed for robots.

Specifications

Model: RDDLZ-CSF-25-I
Type: Self-aligning
Diameter: 107 mm
Thickness: 52 mm
Gear type: Cylindrical gear reducer
Installation form: Horizontal
Input speed: 3500 rpm
Rated power: 0.1 kW
Output speed: 0~500 rpm
Available torque: 1~100 N.m
Gear ratio: 30, 50, 80, 100, other gear ratios please contact us.

Parameters

Gear ratio	30	50	80	100
Rated torque when input 2000r/min (N.m)	27	39	63	67
Allowable peak torque at start and stop (N.m)	50	98	137	157
Maximum allowable average load torque (N.m)	38	55	87	108
Momentary allowable maximum torque (N.m)	95	186	87	304
Allowable maximum input speed (r/min)	5500
Allowable average input speed (r/min)	3500
Arc seconds	≤20	≤20	≤10	≤10

Dimensions (unit: mm)

Harmonic Drive Gearbox Applications

RDDLZ harmonic drive gearboxes can be used to optimize the shape of robots, increase precision, increase strength, improve flexibility, etc., and are widely used in industrial robots, numerical control equipment, medical instruments, military and other fields.

Tips: Types of the Harmonic Drive Gearbox

The harmonic reducer is to ensure that the equipment can reliably complete the task while reducing the speed and increasing the torque.

According to different structural forms, there are cup-type harmonic reducers, hat type harmonic reducers and other series.
According to special performance requirements, there are ultra-thin harmonic reducers, high torque harmonic reducers and other series.
