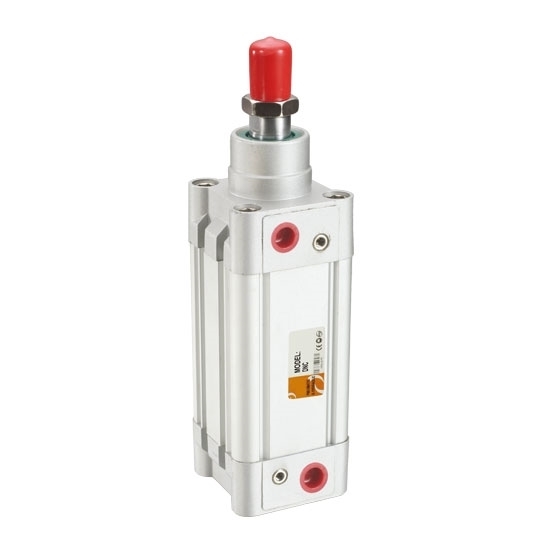

Double Acting Pneumatic Cylinder, 100mm Bore, 50mm Stroke

0 reviews • Write a review

from

$185.69

Ex Tax: $185.69

Stock: In Stock
Model: RDDLZ-CP-DNC
Weight: 1.00
SKU: RDDLZ-CP-DNC

Available Options

Short Description

Bore X Stroke

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

pneumatic cylinder for sales, stoke optional 50mm x 100mm, 63mm x 200mm or 100mm x 50mm, bore and stoke can be customized. Factory direct sales, air cylinder operational safety, speed control and fast respond.

Pnuematic Cylinder Specifications

Model					RDDLZ-CP-DNC
Bore Size					32mm, 40mm, 50mm, 63mm, 80mm, 100mm, 125mm
Stroke					25mm, 50mm, 350mm, 500mm (Max Stroke: 2000mm)
Acting Type					Double Acting
Working Medium					Air
Max Pressure					1.5 Mpa
Working Temperature					-20~+80℃
Speed Range					30-800 mm/s
Cushion Type					Adjustable Cushion At Both Ends
Cushioning Length					27mm, 30mm, 36mm, 40mm
Port Size					G 1/8", G 1/4", G 3/8", G 1/2", G 3/4"
Material					Aluminum

Air Cylinder Dimension (mm)

Bore/ symbol	AM	ΦB	φ MM	TG	RT	E	EE	J2	J3	KK	PL
Bore/ symbol	AM	d 11	18	TG	RT	E	EE	J2	J3	KK	PL
32mm	22	30	12	32.5	M6	45	45	6	5.2	M10 X 1.25	15.6
40mm	24	35	16	38	M6	54	54	8	6	M12 X 1.25	14
50mm	32	40	20	46.5	M8	64	64	10.4	8.5	M16 X 1.5	14
63mm	32	45	20	56.5	M8	75	75	12.4	10	M16 X 1.5	17
80mm	40	45	25	72	M10	93	93	12.5	8	M20 X 1.5	16.4
100mm	40	55	25	89	M10	110	110	12	10	M20 X 1.5	18.8

Cylinder Bore	L2	VA	BG	L7	VD	1	2	3	L1	WH	ZJ
32mm	94	4	16	3.3	10	10	16	6	18	26	120
40mm	105	4	16	3.6	10.5	13	18	6	21.5	30	135
50mm	106	4	17	5.1	11.5	17	24	8	28	37	143
63mm	121	4	17	6.6	15	17	24	8	28.5	37	158
80mm	128	4	17	10.5	15.7	22	30	6	34.7	46	174
100mm	138	4	17	8	19.2	22	30	6	38.2	51	189

Note:
1. Hexagon nut with female thread for assembling.
2. Adjustable bolt of end cushion value.
3. Spread feeling machine slot, used for installing to near to spread a feeling machine.
4. + Express stroke added.

Tips: Advantages of DNC standard pneumatic cylinders

1. Standard pneumatic cylinders refer to cylinders whose functions and specifications are commonly used, whose structures are easy to manufacture, and whose manufacturers usually supply them to the market as general products. The common standard DNC series cylinder is the most widely used pneumatic actuator in pneumatic system, which is suitable for all walks of life, and the automatic drilling machine in the machinery manufacturing industry uses the DNC standard cylinder.
2. The DNC standard air cylinder can work normally in a non-oil-giving state, the action mode is the complex type, the piston type structure, the piston can be magnetic, also can not have the magnetism. The maximum use pressure force is 1.0MPa, the applicable temperature range is -20℃~80℃, the buffer mode is elastic buffer.
3. DNC Standard pneumatic cylinder standardization degree is very high, cylinder shape and installation connection size is in line with international standards and a number of national standards, different brands of cylinder interchange is more convenient. In terms of performance design, a range of functions can be extended through the replacement of related components, which is more convenient in practical applications.
