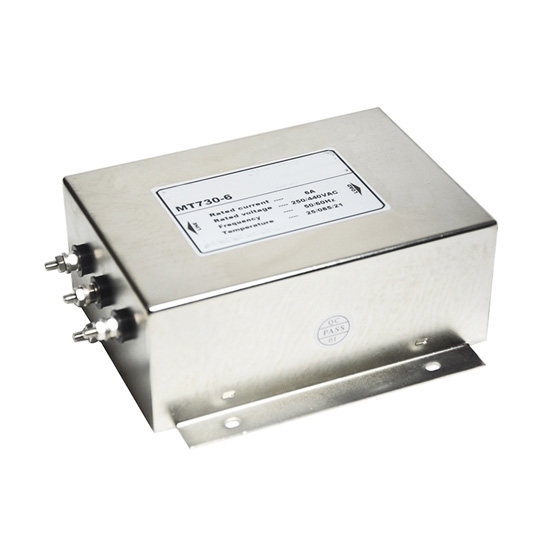

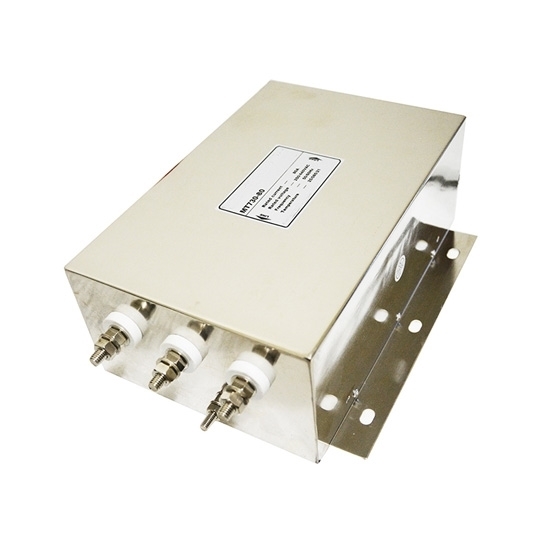

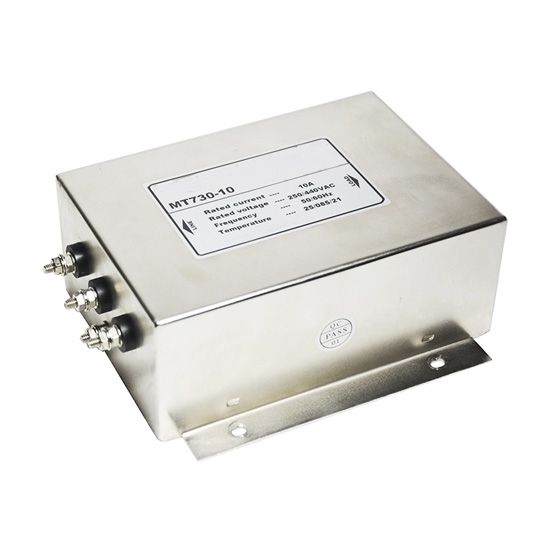

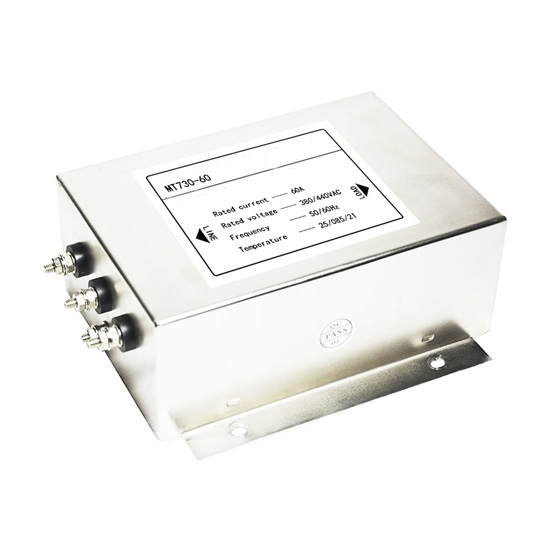

RDDLZ-MT730 series 3-phase 3-wire EMC filters are designed for suppressing the interference of VFD input end to the power grid and other digital equipment. With a three-stage filter design, they works at 250/440V AC 50/60Hz, current rating from 6 Amp, 10 Amp, 20 Amp, 25 Amp, 40 Amp to 1000 Amp with high impedance characteristics over a wide range of frequency and excellent common mode and differential mode suppression capability.

Applications: The EMC input line filters are widely used in variable frequency drives, servomotors, frequency converters and other industrial electronic equipment which work on the principle of frequency conversion as well as the work site with strict environmental requirements.

Specification

1. Technical Data

Model	RDDLZ-MT730
Rate Voltage	250/440V AC
Operating Frequency	50/60Hz
Phase	3 Phase
Rated Current @40℃	6A-1000A
Climatic Category	25/085/21 (-25℃ to +85℃)
Test Voltage	2250V DC 3S (P - P); 2700V DC 3S (P - E)

2. Selection Table

Model	Rated Current @40℃	Leakage Current (250VAC/50Hz @20℃)	VFD Power (kVA)	Dimension	Connection		Weight (kg)
Model	Rated Current @40℃	Leakage Current (250VAC/50Hz @20℃)	VFD Power (kVA)	Dimension			Weight (kg)
RDDLZ-MT730-6	6A	＜7.5mA	1.5	Fig.1	M4	—	1.45
RDDLZ-MT730-10	10A	＜7.5mA	3.0	Fig.1	M4	—	1.45
RDDLZ-MT730-15	15A	＜7.5mA	5.5	Fig.1	M4	—	1.5
RDDLZ-MT730-20	20A	＜7.5mA	7.5	Fig.1	M4	—	1.5
RDDLZ-MT730-25	25A	＜7.5mA	11.0	Fig.2	M6	—	3.1
RDDLZ-MT730-30	30A	＜7.5mA	15.0	Fig.2	M6	—	3.1
RDDLZ-MT730-40	40A	＜13.0mA	18.5	Fig.3	M6	—	3.3
RDDLZ-MT730-50	50A	＜13.0mA	22.0	Fig.3	M6	—	3.6
RDDLZ-MT730-60	60A	＜13.0mA	30.0	Fig.3	M6	—	3.6
RDDLZ-MT730-80	80A	＜40.0mA	37.0	Fig.4	M8	—	6.6
RDDLZ-MT730-100	100A	＜40.0mA	45.0	Fig.4	M8	—	6.63
RDDLZ-MT730-120	120A	＜40.0mA	55.0	Fig.4	M8	—	6.65
RDDLZ-MT730-150	150A	＜50.0mA	75.0	Fig.4	M10	—	6.95
RDDLZ-MT730-200	200A	＜50.0mA	95.0	Fig.4	M10	—	11
RDDLZ-MT730-300	300A	＜45.0mA	110/132	Fig.5	—	O	14
RDDLZ-MT730-400	400A	＜45.0mA	160	Fig.5	—	O	14
RDDLZ-MT730-500	500A	＜60.0mA	200	Fig.6	—	O	18
RDDLZ-MT730-630	630A	＜60.0mA	315	Fig.6	—	O	18
RDDLZ-MT730-800	800A	＜90.0mA	375	Fig.6	—	O	21.7
RDDLZ-MT730-1000	1000A	＜90.0mA	450	Fig.6	—	O	21.7

Dimensions (Unit: mm)

Typical Circuit Diagram

Insertion Loss in dB

* Straight line refers to common mode; dotted line refers to differential mode.

Tips: What is an EMC filter for variable frequency drive (VFD)?

The special filter for variable frequency drive is a filter specially designed to eliminate the frequency spectrum components that interfere with the power grid and other digital electronic equipment and enhance the electromagnetic compatibility (EMC) of the VFD when it is working. The EMC filter for VFD is composed of a low-pass filter circuit made up of an inductor and a capacitor, which allows the current of the useful signal to pass, and has a larger attenuation for the interference signal with a higher frequency.

The filters for variable frequency drive can be divided into VFD input filters and VFD output filters based on their use positions.
1. Characteristics of VFD input filters

A wide range of attenuation characteristics;
Small leakage current.

2. Characteristics of VFD output filters

dv / dt suppression, over-voltage limitation;
Reduce the electromagnetic interference of the VFD;
Reduce the loss of VFD and motor coil.
