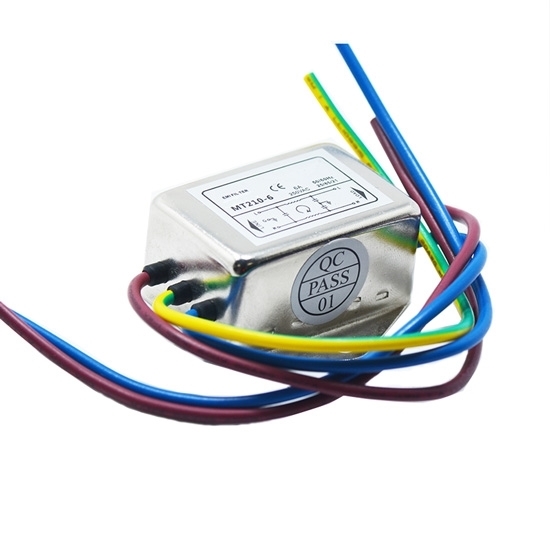

1A EMI Power Line Filter, 1 Phase

0 reviews • Write a review

from

$59.85

Ex Tax: $59.85

Stock: In Stock
Model: RDDLZ-EMI-2101
Weight: 1.00
SKU: RDDLZ-EMI-2101

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

EMI power line filter, single-phase single-stage, rated current 1A and rated voltage 115/250V AC 50/60Hz, is designed for commonly use in line filtering or noise filtering of various electrical equipment, electronics, household appliances, office equipment and other equipment.

Specification

Model	RDDLZ-MT210-1
Filter Type	EMI
Configuration	Single stage
Rated Current @ 40℃	1A
Rated Voltage	115/250V AC
Operating Frequency	50/60Hz
Phase	Single
Leakage Current	≤0.8mA @ 250V AC 50Hz 20℃
Hipot Rating (one minute)	Line to Line	1450V DC
	Line to Ground	2000V DC
Climatic Category	25/085/21
Working Temperature	-25°C~+85°C
Output Termainal (Optional)	Lead wire
Weight	65g
Dimension	See below

Insertion Loss Table (in 50Ω system acccording to IEC/CISPR No.17)

Dimensions (Unit: mm)

Electrical Schematic

Tips: What is a power line filter?

Power line filter is electrical equipment which effectively filters particular frequency point in the power line or the frequency out of the particular frequency point. Power line filter performance is to get a certain frequency power supply signal or power supply signal after eliminating a certain frequency through connecting power supply filter in power line. Based on this performance of power line filter, a square wave group or compound noise wave could be converted into a certain frequency sine wave through power line filter.

Power supply filter is a passive bi-directional network, that is, one end is power supply, and the other end is load. Power supply filter principle is a impedance adaption network: the larger the impedance mismatching is (between “power filter input&output” and “power & load” side), the more effective the attenuation of electrical magneto interference is.
