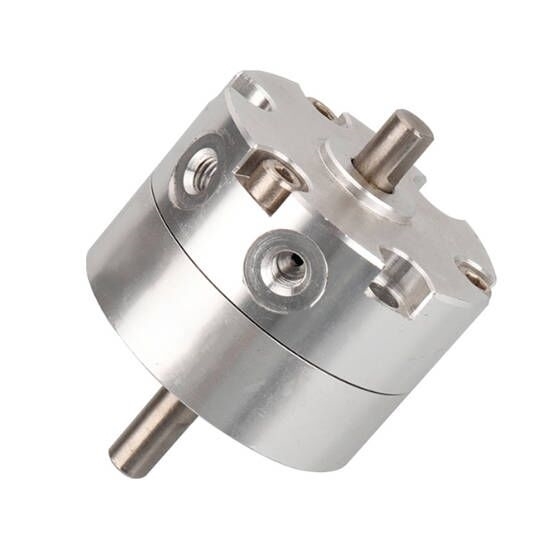

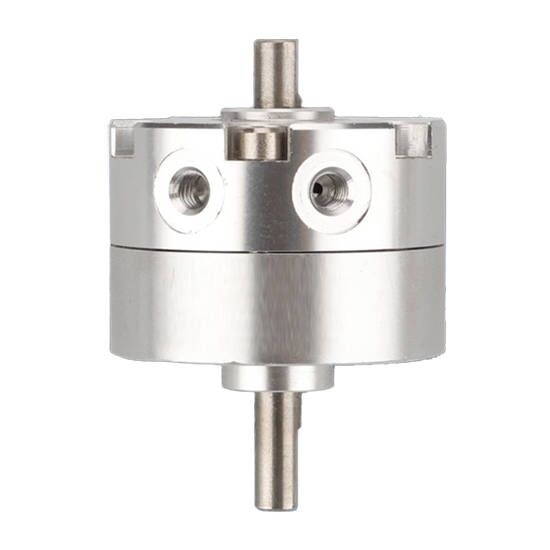

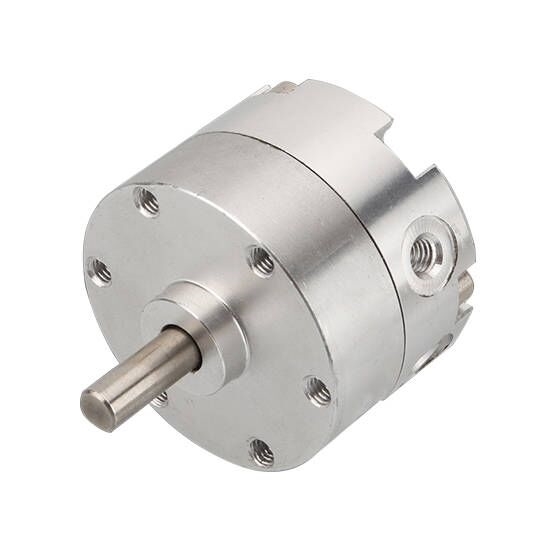

10mm Rotary Pneumatic Cylinder, Vane Type

0 reviews • Write a review

from

$127.59

Ex Tax: $127.59

Stock: In Stock
Model: RDDLZ-PC-2BWM3
Weight: 1.00
SKU: RDDLZ-PC-2BWM3

Available Options

Bore

Swing Angle

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Rotary vane cylinder with magnetic switch, available in 10mm or 15mm bore size, single vane cylinder with 90°, 180° or 270° rotation angle. Rotating pneumatic cylinder piston rod is made of stainless steel with high hardness, wear resistance and long service life.

Specification

Model	RDDLZ-CRB2BW-M3
Bore Size	10mm	15mm
Swing Angle	90°, 180°, 270°
Fluid Used	Air (no oil)
Pressure Resistance Test Pressure	1.05MPa
Ambient Temperature and Fluid Temperature	5~ 60°C
Maximum Operating Pressure	0.7MPa
Minimum Operating Pressure	0.2MPa	0.15MPa
Swing Time Adjustment Range （Note 1)	0.03~0.3 s/90°
Allowable Kinetic Energy (Note 2)	0.00015J	0.001J
Allowable Kinetic Energy (Note 2)	0.00015J	0.00025J
Allowable Radial Load	15N	15N
Allowable Axial Load	10N	10N
Vent Position	Main body side or axial
Size of the Opening (Body Side, Axial Direction)	M3
Adjustable Angle Range of Components (Note 3)	0~230°	0~240°

Note 1: If the speed limit exceeds the upper limit (0.3s/90°), crawling or inactivity may occur, so it should be used within the adjustable speed range.
Note 2: The upper part of the table shows the kinetic energy value when the pad cushion is used (for the swing end), and the lower part shows the kinetic energy value when the pad cushion is not used.
Note 3: The adjustment range in the table is 270°.

Features

Thickened base, strong impact resistance, making the rotary vane cylinder stable and compressive.
The cylinder body of the rotary vane cylinder is thick, smooth and burr-free inside, with high-quality double sealing rings, the sealing performance is good, smooth and not stuck.
The piston rod is made of stainless steel fine grinding, which is strong and hard, wear-resistant and air-leakage-proof.
High-strength cap end, strong impact resistance, improve the overall stability of the rotary vane cylinder, extend rotary cylinder life.

Dimension (Unit mm)

Size	A	B	C	D	E (g7)	F (h9)	G1	G2	J	K	M	N	P
10	29	15	8	14	4^-0.004_-0.016	9⁰_-0.006	3	1	5	9	9.5	9.5	24
15	34	20	9	18	5^-0.004_-0.016	12⁰_-0.043	4	1.5	6	10	14	10	29
20	42	29	10	20	6^-0.004_-0.016	14⁰_-0.043	4.5	1.5	7	10	20	13	36
30	50	40	13	22	8^-0.004_-0.016	16⁰_-0.043	5	2	8	12	26	14	43
40	63	45	15	30	10^{-0.004 -0.016}	25⁰_-0.052	6.5	4.5	9	20	31	20	56

Size	Q1	Q2	Q3	R	S	T	V1	V2	W	X	Y
10	M3x0.5 Deep6	6	/	M3x0.5	14	3.6	30	37	19.8	8.5	14.5
15	M3x0.5 Deep10	6	M3X0.5 Deep 5	M3x0.5	19	7.6	39.5	47	21	11	17
20	M4x0.7 Deep13.5	11	M4X0.7 Deep 7.5	M5x0.8	24.5	10.5	50.5	59	22	14	21
30	M5x0.8 Deep18	16.5	M5X0.8 Deep 10	M5x0.8	34.5	14	64	75	24	15.5	25
40	M5x0.8 Deep16	17.5	M5X0.8 Deep 10	M5x0.8	39.8	17	79.5	90	30	21	31.6

Tips: What is the difference between single and double vane rotary actuators?

In these actuators, the hub simply rotates between stops by using oil or air pressure to create movement at the output lever. Double-bladed actuators include two opposing blades which provide greater torque but very limited rotation compared to single-bladed actuators with a complete circular chamber.

In the single vane type, rotational movement is usually limited to 280 degrees. In the two-blade type, the movement is usually 90 or 100 degrees, with a much smaller range of rotation and twice the force of a single-blade configuration.
