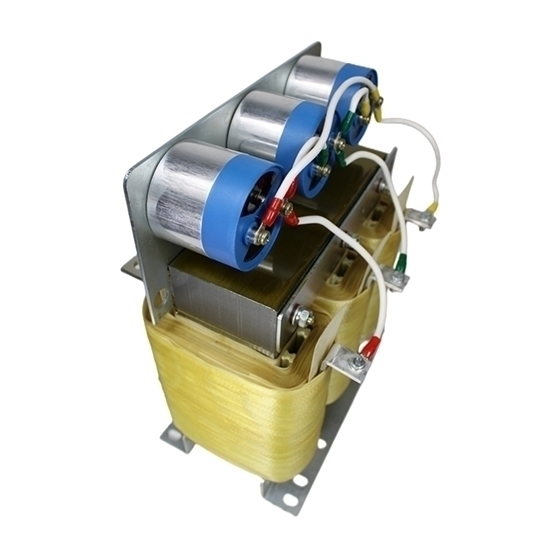

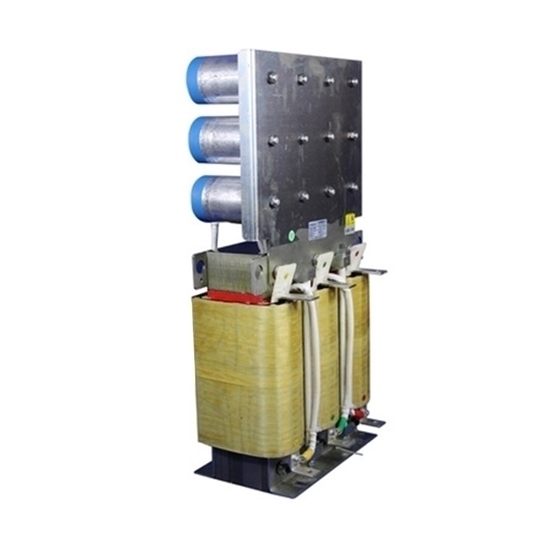

50A Sine Wave Filter, 3 Phase

0 reviews • Write a review

from

$889.88

Ex Tax: $889.88

Stock: In Stock
Model: RDDLZ-SWF-50
Weight: 1.00
SKU: RDDLZ-SWF-50

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High-quality sine wave filter with rated current 50A, power of 22kW, withstand voltage 3000VAC 60/s. The sine filter has the advantage of small size, light weight and long service life.

Specification

Model	RDDLZ-SCAR-0050
Rated current	50A
Adapted power	22kW
Withstand voltage	3000 VAC 60/s
Fundamental frequency	50Hz
Carrier frequency	4kHz
Insulation class	F
Altitude	＜2000m
Working temperature	-40-85℃
Voltage drop	8%-12%
Weight	32kg

Dimension

Model	L	W	H	L1	W1	A	B
RDDLZ-SCAR-0050	270mm	255mm	300mm	245mm	114mm	11.5mm	18mm

Application

Tips: Precautions for Using Sine Wave Filter

The filter will filter out a large number of high-order harmonic components in the process of filtering the PWM wave into a sine wave, so the inverter will have a vacant space of about 5%~7.5% of the rated output current of the inverter when the filter is no-load. Loading current (under the condition of 380V 50Hz. This current is proportional to the fundamental frequency and the output voltage of the inverter).
The filter should ensure good ventilation when in use.
