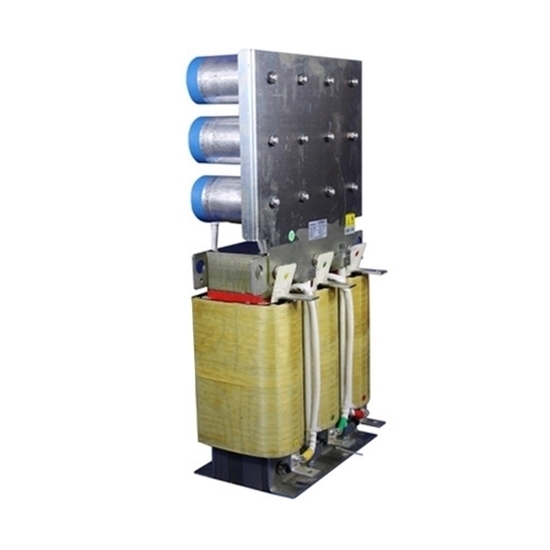

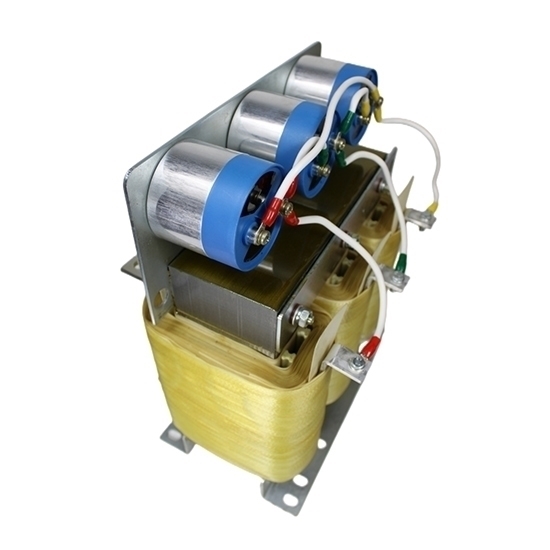

30A Sine Wave Filter, 3 Phase

0 reviews • Write a review

from

$639.27

Ex Tax: $639.27

Stock: In Stock
Model: RDDLZ-SWF-30
Weight: 1.00
SKU: RDDLZ-SWF-30

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

30A sine wave filter with the power of 15kW at a low price for sale, the sine filter features withstand voltage 3000VAC 60/s. The sine filter can extend the motor's life, protect motor insulation, increase transmission distance, and improve system reliability.

Specification

Model	RDDLZ-SCAR-0030
Rated current	30A
Adapted power	15kW
Withstand voltage	3000 VAC 60/s
Fundamental frequency	50Hz
Carrier frequency	4kHz
Insulation class	F
Altitude	＜2000m
Working temperature	-40-85℃
Voltage drop	8%-12%
Weight	24.5kg

Dimension

Model	L	W	H	L1	W1	A	B
RDDLZ-SCAR-0030	270mm	240mm	300mm	245mm	99mm	11.5mm	18mm

Application

Tips: Precautions for Using Sine Wave Filter

After using the sine wave filter, the load capacity of the inverter will be lower than the system rated value.
The sine wave filter will cause a certain proportion of voltage drop in the filtered voltage. At a fundamental frequency of 50Hz, the voltage drop is about 10%. Its ratio is proportional to the change of the fundamental frequency.
