Side Mount Float Switch, PP, 110V/220V

0 reviews • Write a review

from

$25.21

Ex Tax: $25.21

Stock: In Stock
Model: RDDLZ-FS-EPC3
Weight: 1.00
SKU: RDDLZ-FS-EPC3

Available Options

Short Description

Contact Rating

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

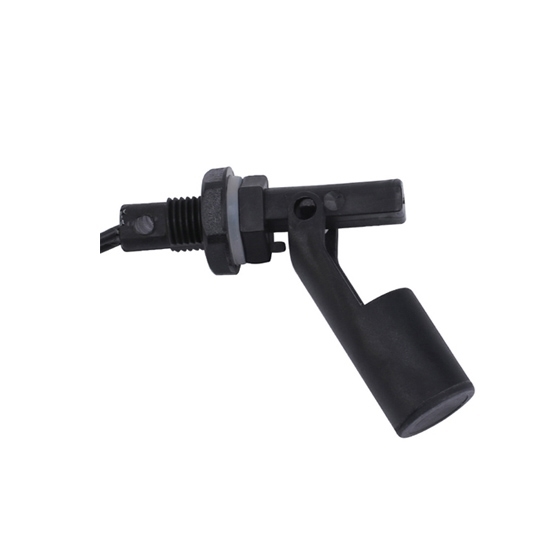

Cheap float switch is equipped with PP material, 110V/220V DC voltage, 10W or 30W power, and 1/2" NPT threaded connection. It is a high-quality liquid level sensor, suitable for water dispensers, water heaters, solar energy, and air conditioners, humidifier.

Specifications

Model	RDDLZ-EPC3-1A1	RDDLZ-EPC3-2A1
Max Contact Rating	10W	30W
Max Switching Voltage	110V DC	220V DC
Max Switching Current	0.5A	1.5A
Max Breakdown Voltage	220V DC	300V DC
Max Contact Resistance	100mΩ	100mΩ
Temperature Rating	-10℃~+85℃	-10~℃+85℃
Installation	Thread 1/2" NPT	Thread 1/2" NPT
Float Ball Material	PP	PP
Float Body Material	PP	PP
Applicable Density	0.65x103kg/m3	0.65x103kg/m3

Dimension (Unit: mm)

Applications

Tips: What is a side mount float switch?

RDDLZ side-mount float switch is a type of liquid level sensor designed to monitor and control the level of a substance in a container, such as a tank or reservoir. Unlike top-mount float switches that are installed vertically from the top of the container, side-mount float switches are affixed horizontally to the side of the tank.

Side-mount float switches are versatile and find applications in various industries, including wastewater management, industrial processes, and water treatment systems. They are often used for pump control, alarms, and other automated processes to ensure proper liquid levels are maintained. The side-mount configuration allows for easy installation in tanks where top access may be limited, providing a practical solution for level sensing and control in diverse liquid storage and processing scenarios.
