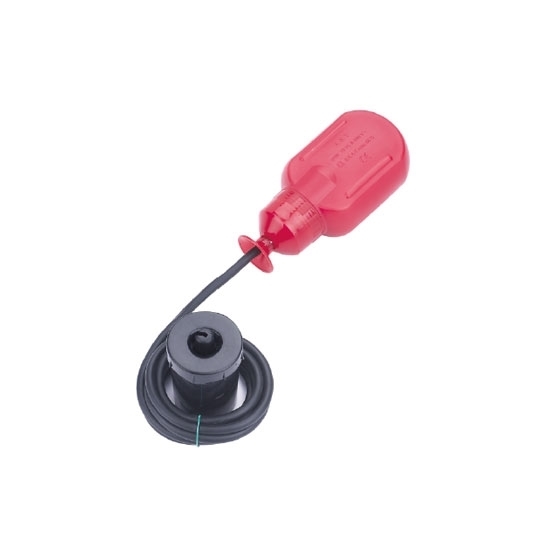

Cable Float Level Switch, SPDT, 110/ 220V

0 reviews • Write a review

from

$47.99

Ex Tax: $47.99

Stock: In Stock
Model: RDDLZ-HTM15-15
Weight: 1.00
SKU: RDDLZ-HTM15-15

Available Options

Short Description

Cable Length

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Full automatic cable float level switch can control water and drainage and prevent the water pump from dry burning, and it has good electrical properties and insulation.

Features

PVC cable: It is made from non-toxic and odor free PVC material that is soft but anti-rupture, which has long life span.
Resistant to high temperature and corrosion: Our cable float level switch can work at 0-65℃ temperature and adapt to certain harsh environments.
With working principle diagram: The working principle diagram is on the heavy hammer for convenient debugging and installation.

Specification

Model	RDDLZ-HTM15-15
Rated Voltage	AC 110V ~ 220V
Contact Form	SPDT (1NO + 1NC)
Cable Length	2m (Default), 3m, 4m, 5m, 10m, 20m, 30m, Customizable
Max. Current	AC 16 (4)A
Frequency	50/60 Hz
Max. Using Temperature	60℃
Material	ABS
Protection Degree	IP 68

Wiring Diagram

Auto-fill-water mode:

Auto-drainage and lack-water protection mode:

Dimensions (Units: mm)

Tips: Uses of float liquid level switch

Float liquid level switch is specially used for liquid level detection, remote transmission and liquid level alarm of all kinds of small and medium-sized atmospheric pressure and pressure liquid storage tanks. It can be applied to all kinds of sanitary, toxic, corrosive media and explosive gas. Different kinds of float sensors have different mounting ways.
